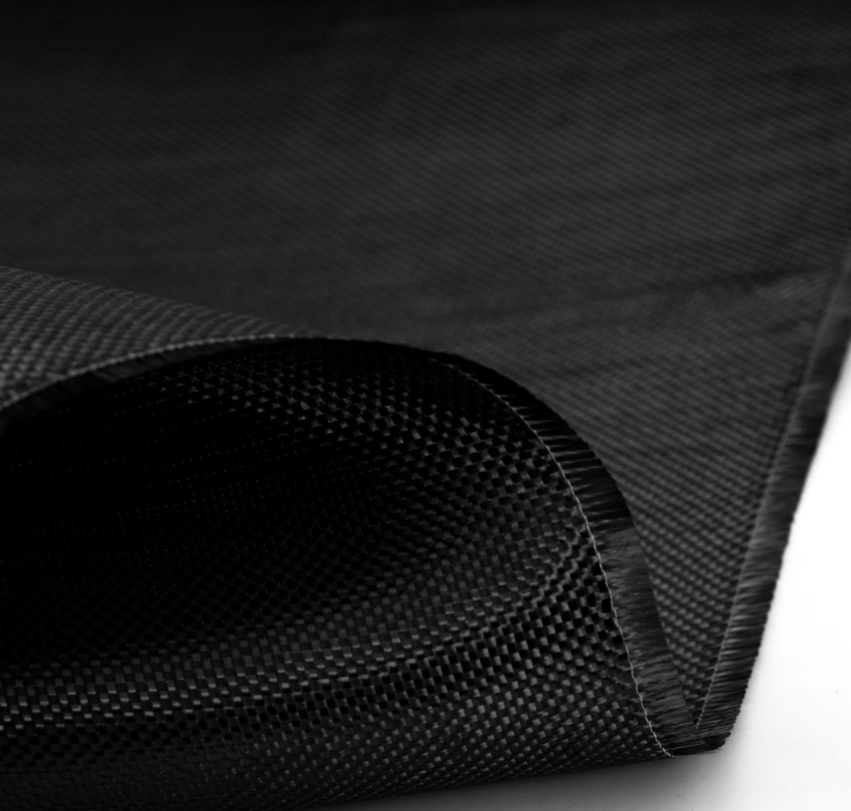

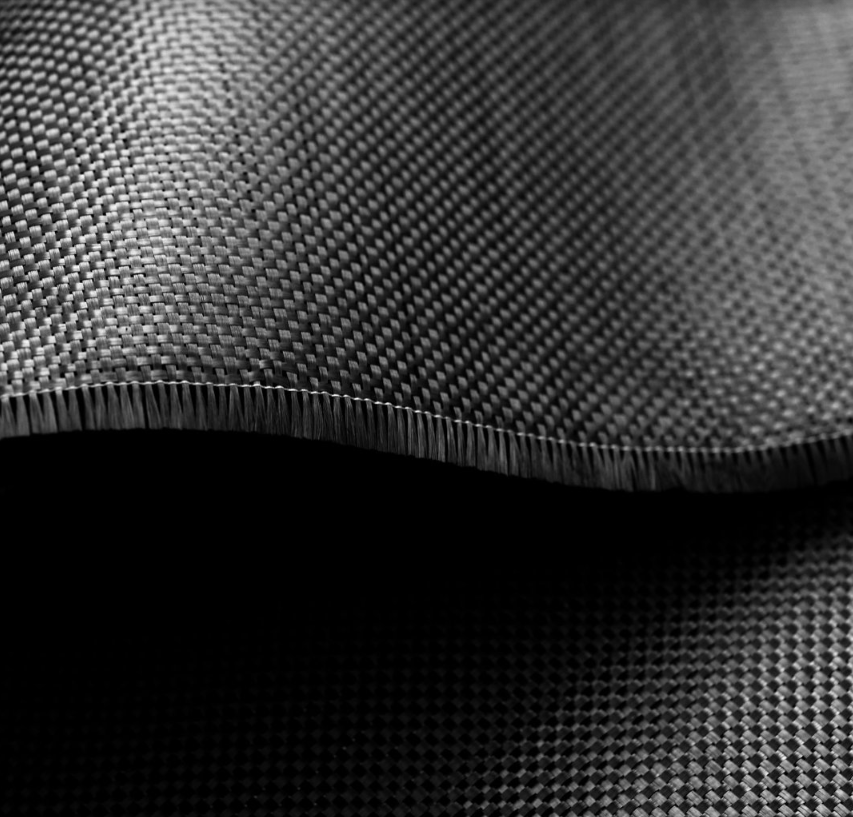

3K 200gsm Carbon Fiber Fabric – Marine Grade for Boat Hull, Mast & Deck Reinforcement

Property Specification
Material 100% PAN-based Carbon Fiber (T300 High Tenacity)
Fiber Tow 3K (3,000 filaments)
Areal Weight 200 g/m² (gsm)

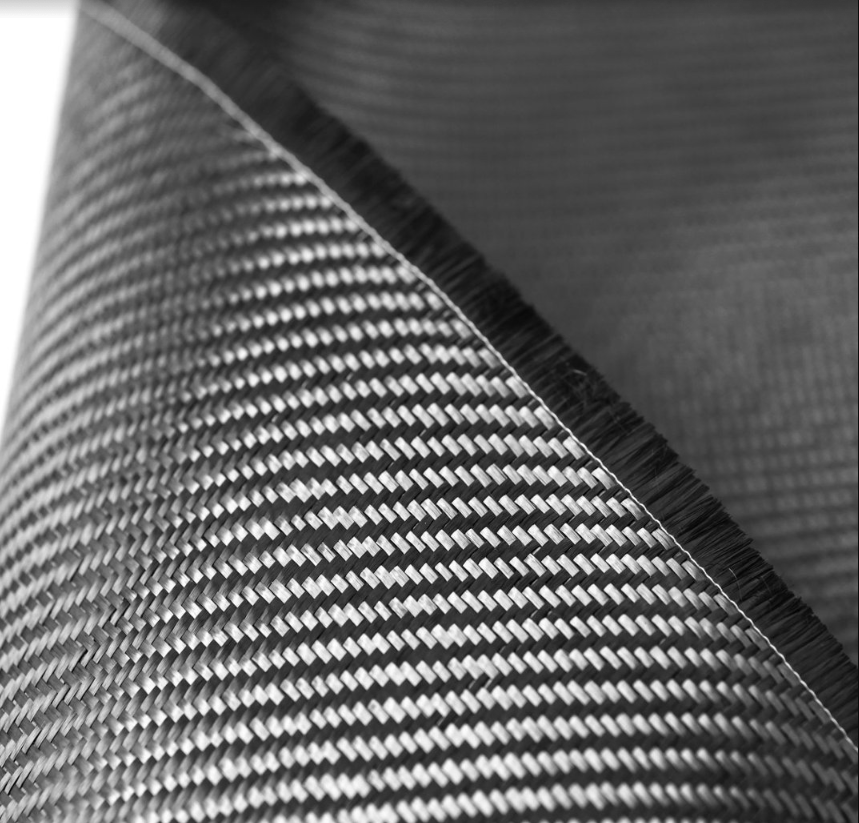

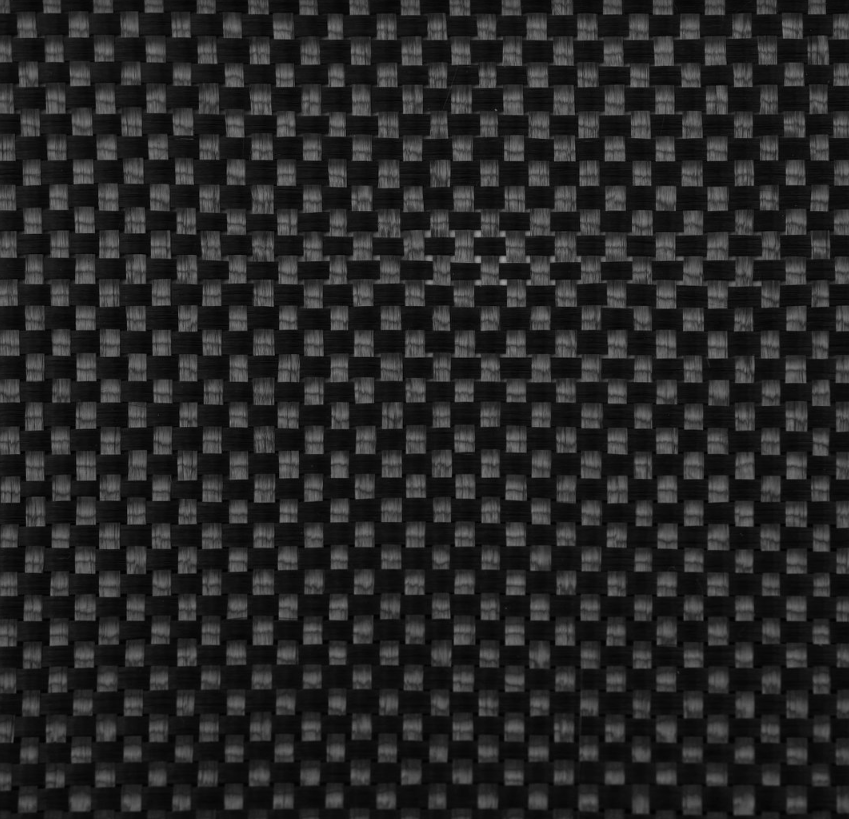

Weave Pattern 2×2 Twill Woven / Plain Woven
Width 43-44″ (110 cm) / Optional up to 1500mm
Tensile Modulus ≥ 230 GPa (T300) / ≥ 294 GPa (T700)
Elongation at Break 1.5% – 2.0%
Fiber Volume Fraction ≥ 55%
Features Abrasion-Resistant, Saltwater & UV Resistant
Certification ISO 9001 / RoHS / CCS
Supply Type Make-to-Order

3K 200gsm Carbon Fiber Fabric – Marine Grade for Boat Hull, Mast & Deck Reinforcement

Marine-grade 3K 200gsm carbon fiber fabric with T300 high tenacity fiber, engineered for boat hull, mast, and deck reinforcement composite laminates. Features saltwater and UV resistance for long-term marine durability. Certified by ISO 9001, RoHS, and CCS for marine applications.

Key Features

  • 3K T300 Carbon Fiber: High tenacity fiber with consistent marine-grade quality
  • 200gsm Balanced Weight: Optimal for hand layup and vacuum bagging processes
  • Saltwater & UV Resistant: Formulated for long-term marine environmental exposure
  • Multiple Weave Options: 2×2 Twill or Plain Woven available
  • Optional Wide Width: Standard 43-44″ or optional 1500mm wide rolls
  • CCS Certified: China Classification Society approved for marine use

Applications

  • Boat hull reinforcement and structural laminates
  • Mast and spar construction
  • Deck reinforcement and anti-slip composite panels
  • Marine structural repairs and retrofitting
  • Offshore and sailing components
  • Saltwater-exposed structural parts requiring corrosion resistance
