Premium 3K 240g Carbon Fiber Fabric – 2×2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports

Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports
Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports - Image 2
Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports - Image 3
Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports - Image 4
Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports - Image 5
Premium 3K 240g Carbon Fiber Fabric - 2x2 Twill Weave UL94 V-0 for Automotive, Aerospace & Sports - Image 6
Property Specification
Material 100% PAN-based Carbon Fiber (T300 Standard Modulus)
Fiber Tow 3K (3,000 filaments)

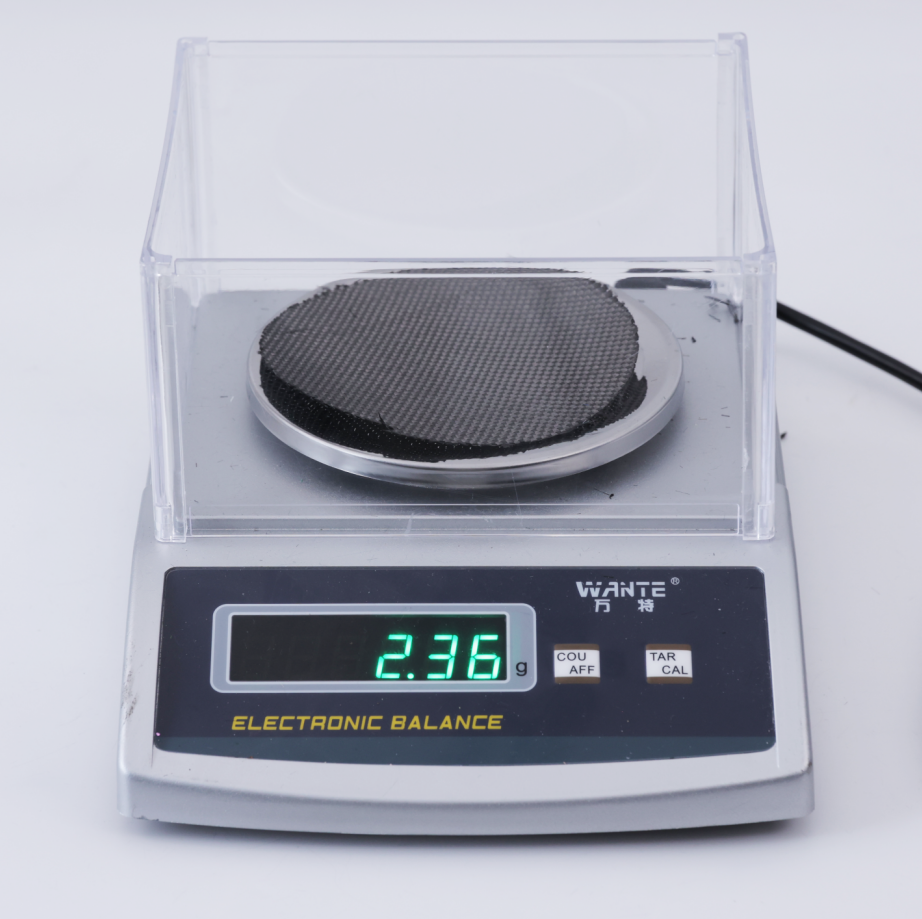

Areal Weight 240 g/m² (200 g/m² ±5% also available)
Weave Pattern 2×2 Twill / Plain Weave
Width 100 cm (standard, customizable)

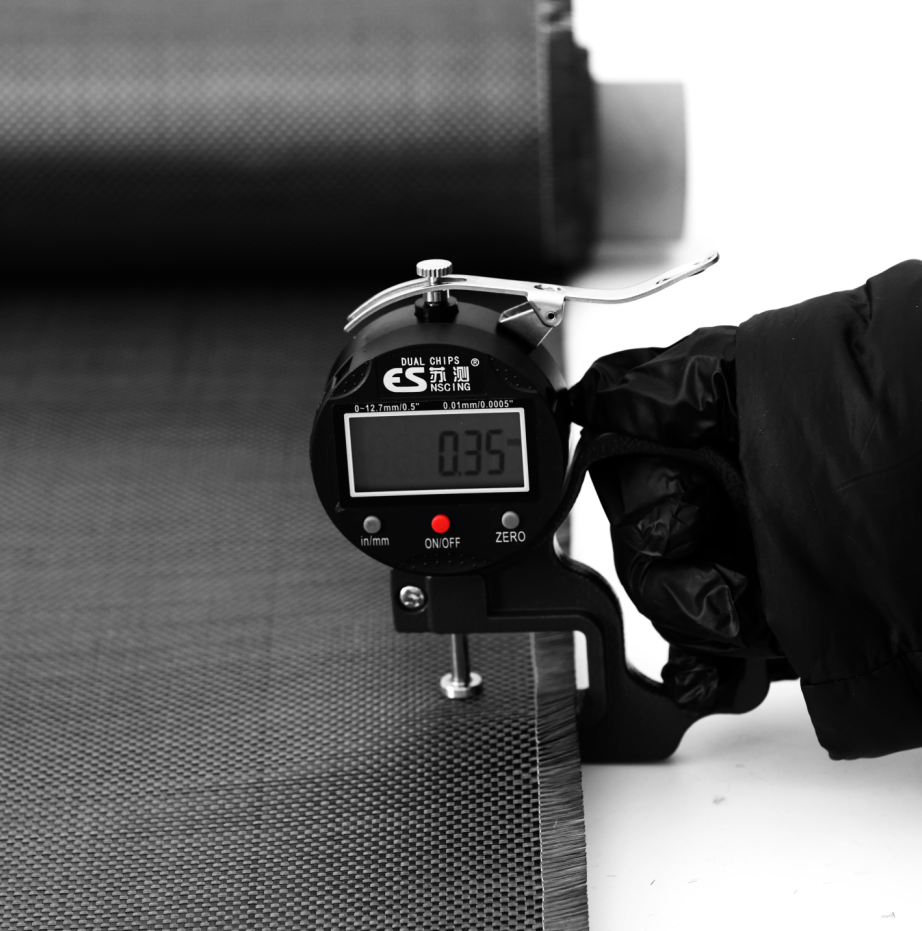

Thickness 0.10 – 0.13 mm per layer
Tensile Strength ≥ 3,500 MPa
Compression Strength ≥ 1,500 MPa
Color Black
Flame Retardancy UL94 V-0, FAR 25.853
Temperature Resistance 120-180°C (200°C+)
Certification ISO 9001 / RoHS / ASTM

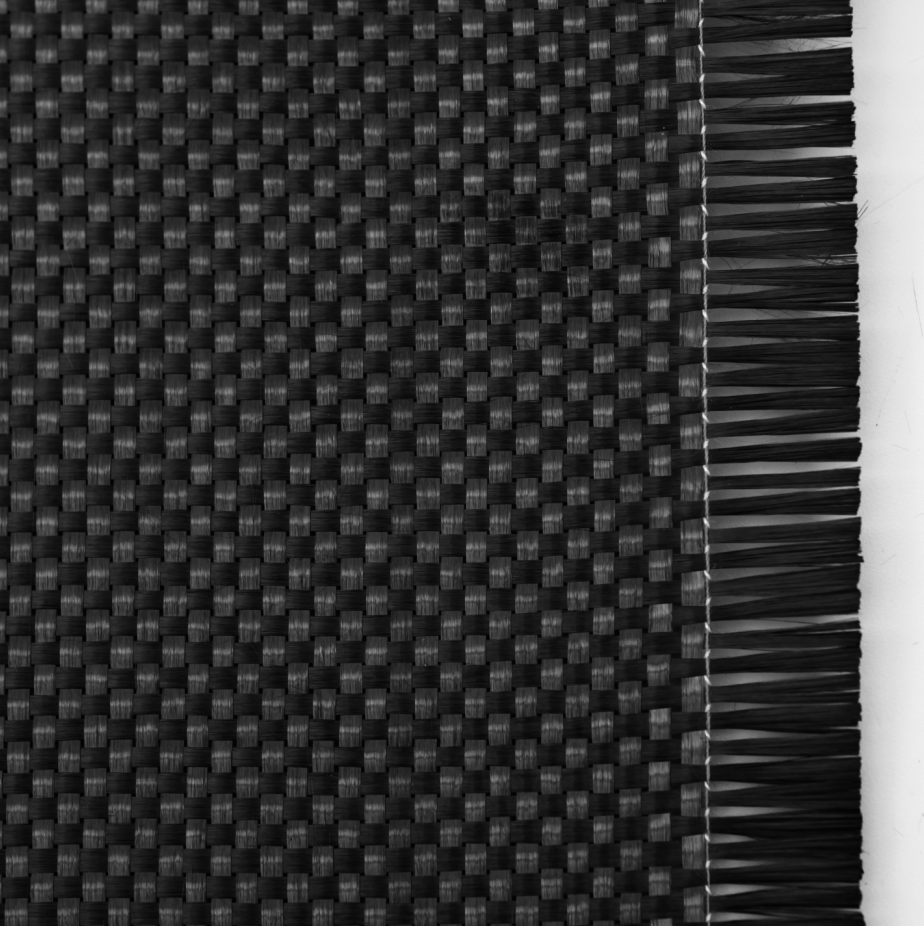

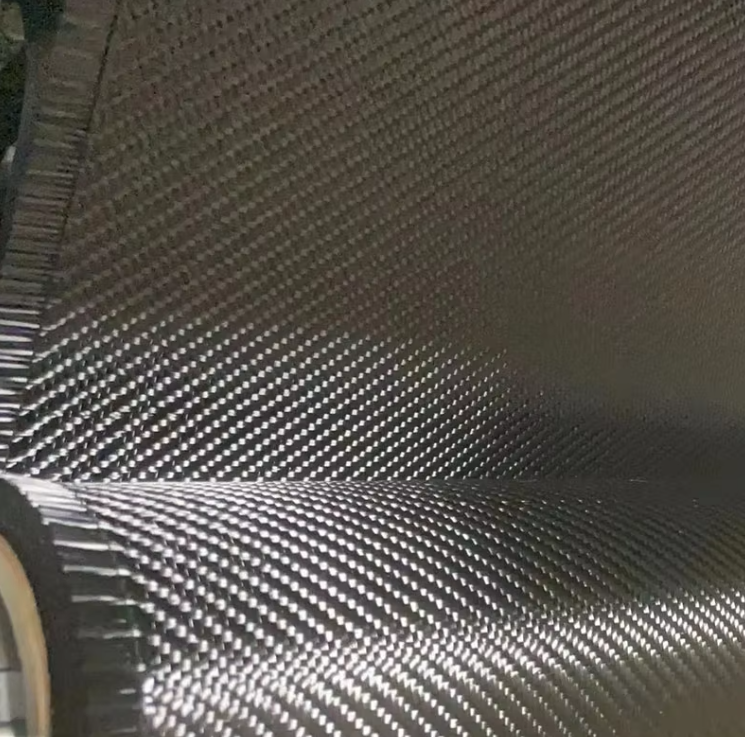

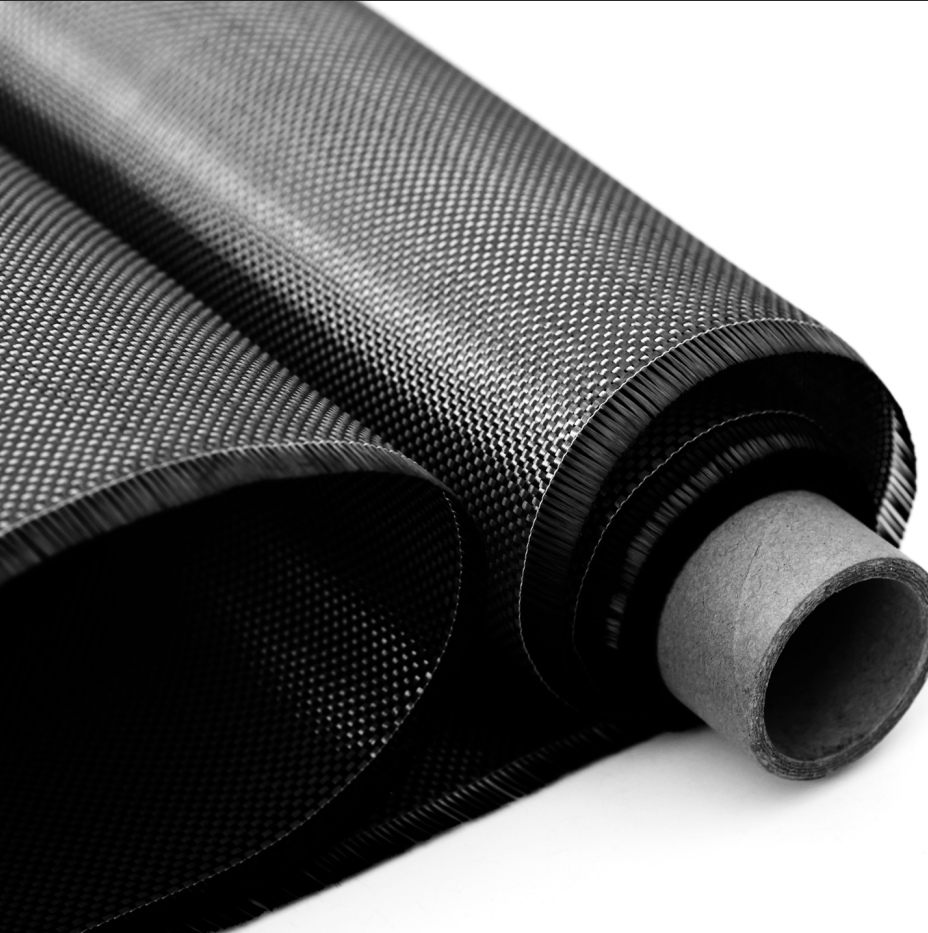

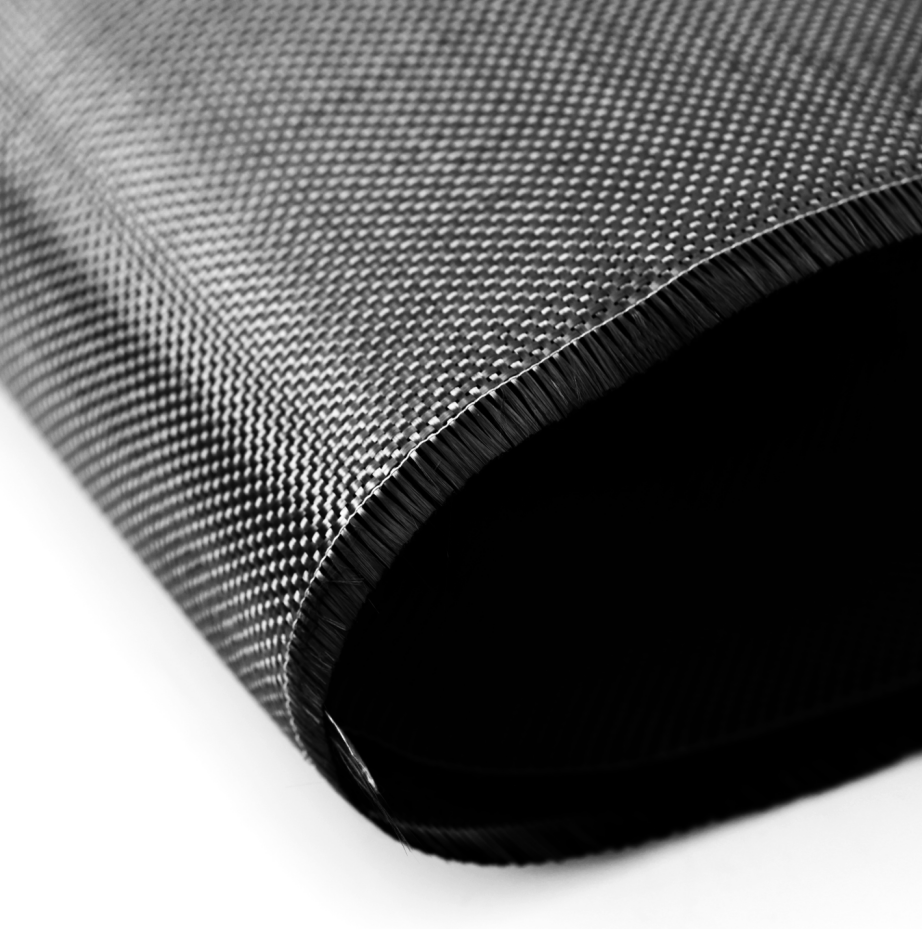

Premium 3K 240g Carbon Fiber Fabric – 2×2 Twill Weave

High-quality 3K 240g carbon fiber fabric made from PAN-based T300 carbon fiber with 2×2 twill weave. UL94 V-0 and FAR 25.853 flame retardant certified. Designed for automotive, aerospace, surfboard, and high-performance sports equipment applications. Equivalent to Toray T300 quality standards.

Key Features

  • 3K PAN-based T300 Carbon Fiber: Premium grade with consistent mechanical properties
  • 240g Areal Weight: Balanced weight for structural strength and workability
  • 2×2 Twill Weave: Classic carbon fiber appearance with excellent drape
  • Flame Retardant Certified: UL94 V-0 and FAR 25.853 approved
  • High Temperature Resistance: Rated for 120-180°C continuous use
  • Compression Strength: ≥ 1,500 MPa for impact-critical applications

Applications

  • Luxury automotive interior trim and exterior body panels
  • Surfboard, wakeboard, and watersports equipment
  • Aerospace components (drone body shells, satellite brackets)
  • Sports equipment (bicycle frames, tennis rackets, hockey sticks)
  • Aircraft interior panels (FAR 25.853 compliant)
  • Industrial composite parts requiring flame retardancy
