3K 240gsm Surfboard Grade Carbon Fiber Fabric – 2×2 Twill UL94 V-0 for Watersports & Sports Equipment

3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment
3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment - Image 2
3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment - Image 3
3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment - Image 4
3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment - Image 5
3K 240gsm Surfboard Grade Carbon Fiber Fabric - 2x2 Twill UL94 V-0 for Watersports & Sports Equipment - Image 6
Property Specification
Material 100% PAN-based Carbon Fiber (T300 High Tenacity)
Fiber Tow 3K (3,000 filaments)

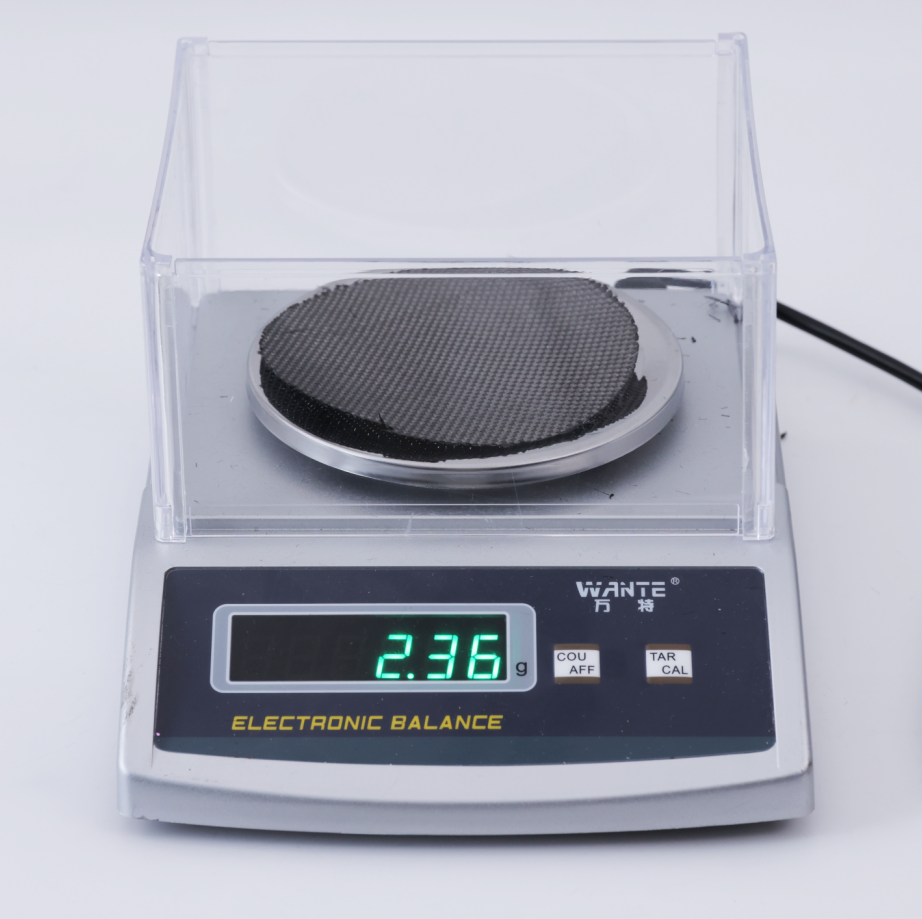

Areal Weight 240 gsm (g/m²)

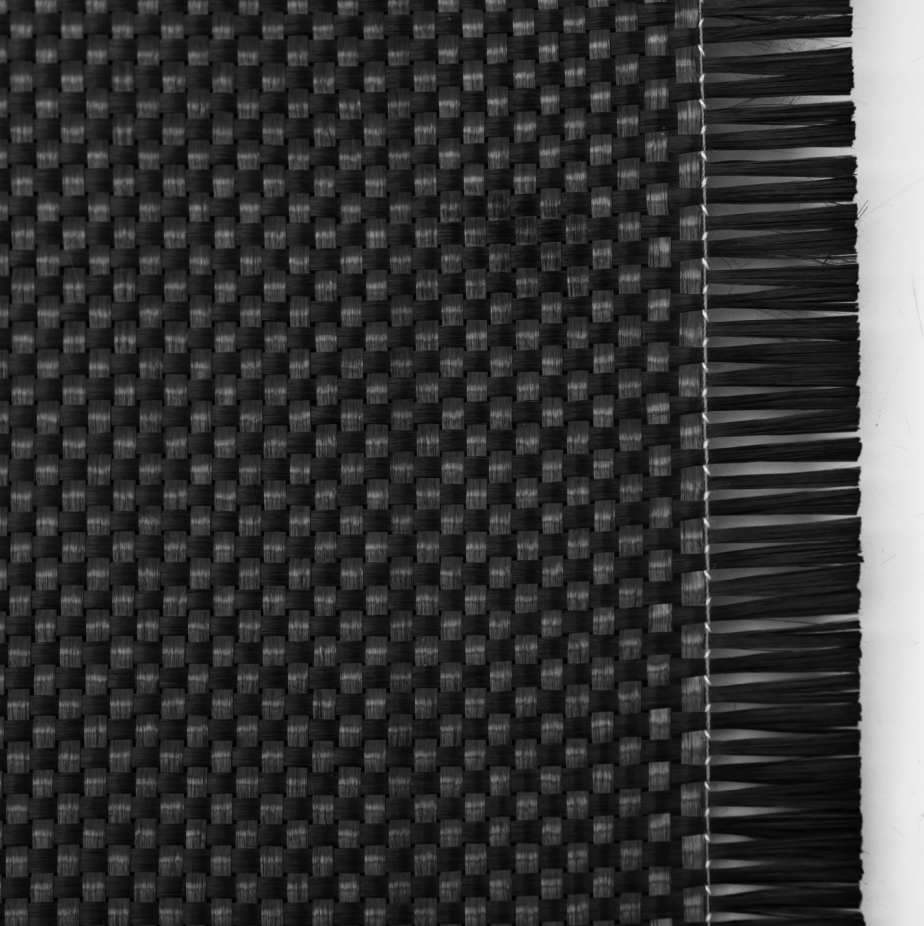

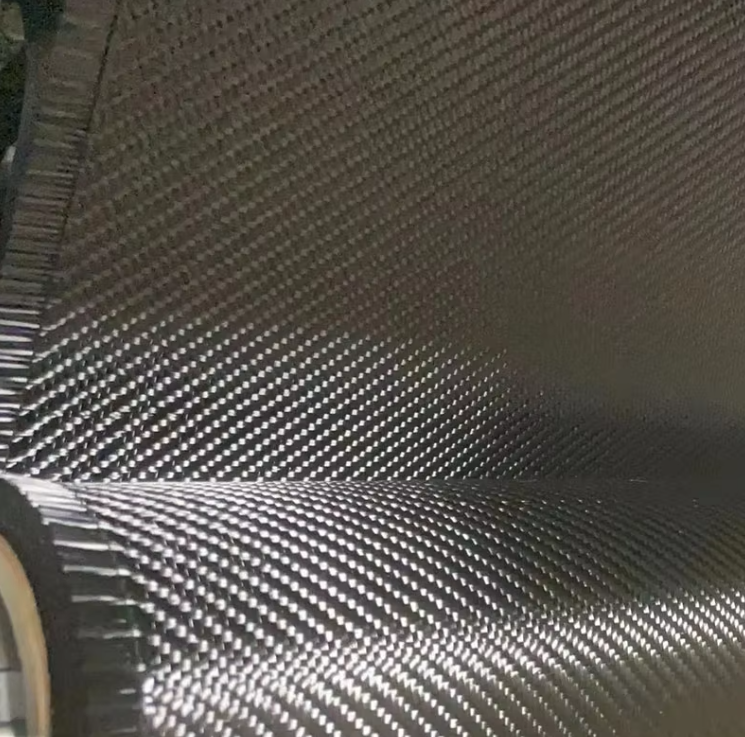

Weave Pattern 2×2 Twill Weave
Width 100 cm (standard, customizable)
Tensile Strength ≥ 3,500 MPa
Compression Strength ≥ 1,500 MPa
Tensile Modulus ≥ 230 GPa (T300) / ≥ 294 GPa (T700)
Temperature Resistance 120-180°C (200°C+ peak)
Flame Retardancy UL94 V-0, FAR 25.853
Yarn Type T300 / T700 / T800
Certification ISO 9001 / RoHS / ASTM

3K 240gsm High Tenacity Carbon Fiber Fabric – Surfboard & Sports Equipment Grade

High tenacity 3K 240gsm carbon fiber fabric certified UL94 V-0 and FAR 25.853 flame retardant, engineered for surfboard, wakeboard, and premium sports equipment composite laminates. Made from PAN-based T300/T700 carbon fiber with classic 2×2 twill weave.

Key Features

  • T300/T700 Grade 3K Fiber: High tenacity and high modulus for sports performance
  • 240gsm Balanced Weight: Optimal strength-to-weight for watersports equipment
  • 2×2 Twill Weave: Excellent drape for complex surfboard and sports contours
  • UL94 V-0 / FAR 25.853 Certified: Flame retardant for certified sports and aerospace use
  • High Temperature Rated: 120-180°C continuous, 200°C+ peak tolerance
  • Compression Strength: ≥ 1,500 MPa for impact-critical sports applications

Applications

  • Surfboard, wakeboard, and paddleboard structural laminates
  • Watersports equipment requiring saltwater and impact resistance
  • Premium sports equipment (bicycle frames, tennis rackets, hockey sticks)
  • Aerospace interior components (FAR 25.853 compliant)
  • Automotive performance parts requiring flame retardancy
  • Custom composite sporting goods and competition equipment
