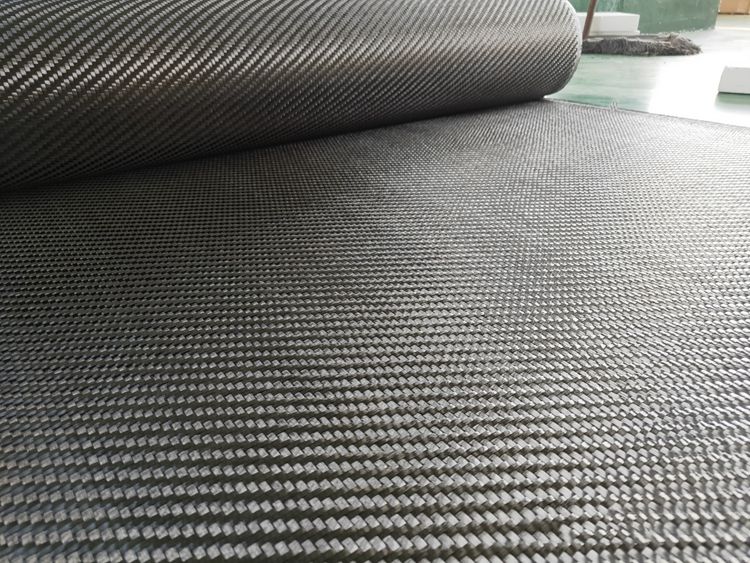

3K Carbon Fiber Fabric — Plain & Twill Weave
Impact Materials offers premium 3K carbon fiber fabric in plain and twill weaves, with areal weights ranging from 160gsm to 240gsm. Made from 100% carbon fiber, this woven fabric delivers exceptional strength-to-weight ratio for demanding composite applications.
Key Specifications
| Property | Specification |
|---|---|
| Material | 100% Carbon Fiber |
| Tow Size | 3K (3,000 filaments per tow) |
| Areal Weight | 160gsm / 200gsm / 220gsm / 240gsm |
| Weave Pattern | Plain / Twill / Satin |
| Standard Width | 1000mm (custom widths available) |
| Color | Black |
| Form | Roll |
| Brand | Impact |
Performance Properties
- High tensile strength and modulus
- Excellent fatigue resistance
- Thermally and electrically conductive
- Abrasion-resistant surface
- Chemical-resistant and flame-retardant
- Waterproof and antistatic
Available Weave Types

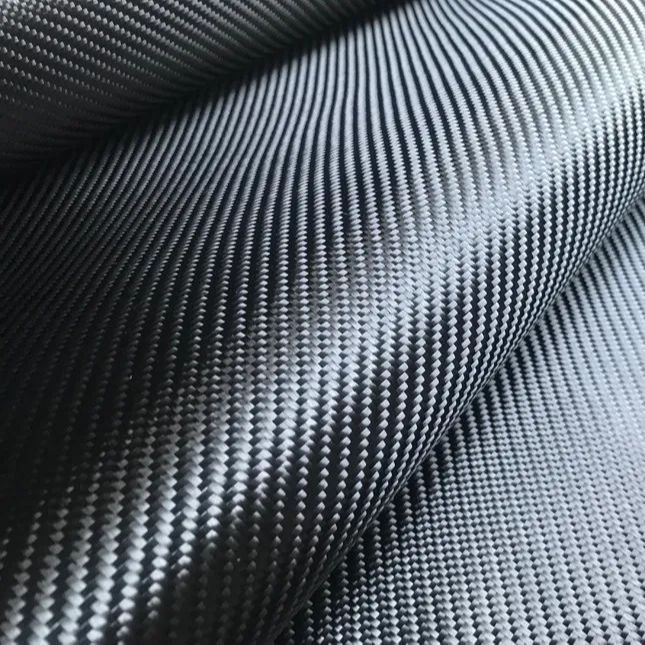

- Plain Weave — Balanced stability in both warp and weft directions. Ideal for flat laminate applications requiring uniform strength distribution.

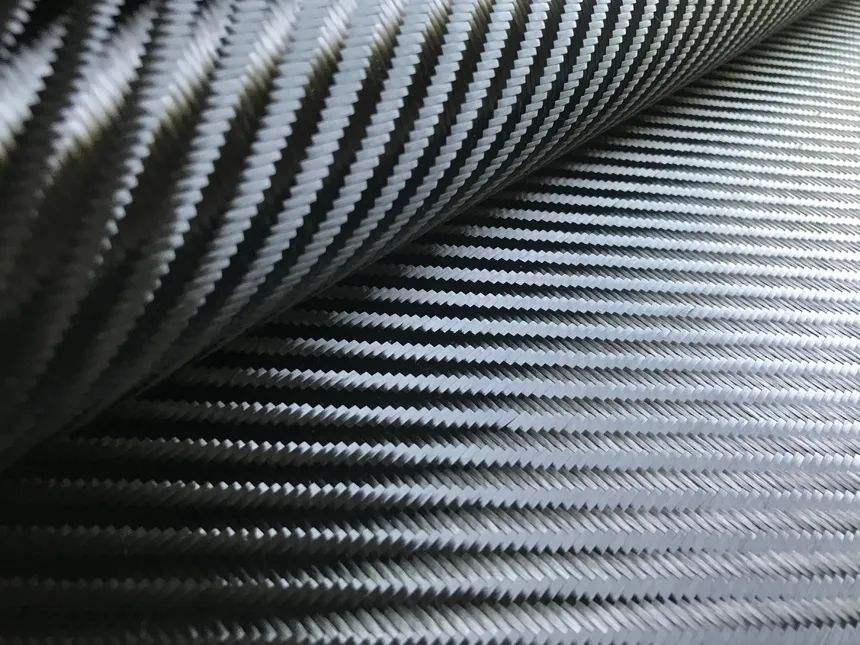

- Twill Weave — Superior drapability for complex mold contours. The diagonal pattern provides better conformability than plain weave, making it the preferred choice for curved surfaces.
- Satin Weave — Maximum drapability with a smooth surface finish. Best for applications requiring excellent surface quality and complex shape layup.
Applications
- Aerospace structural components
- Automotive lightweighting panels
- Marine hull reinforcement
- Sporting goods (bicycle frames, racquets, ski equipment)
- Construction reinforcement (bridge, concrete strengthening)
- Industrial composite parts
Why Choose Impact Materials?
- ISO 9001 certified manufacturing with batch-level traceability
- 20+ years of composite material production experience
- Custom widths available from 50mm to 1500mm
- Free samples available for qualification testing
- Global shipping with DDP and FOB terms
- OEM service accepted
Minimum Order: 30 m² | Lead Time: 30 days | Sample: Available upon request
