3K Epoxy Prepreg Cloth – Plain / Twill / UD

Property Specification
Material 100% Carbon Fiber Prepreg (Epoxy Resin)
Fiber Tow 3K (3,000 filaments)
Areal Weight 150 / 200 g/m²
Weave Pattern Plain / Twill / Unidirectional (UD)
Thickness 0.20 mm
Width Customizable
Yarn Type T300 / T700 / T800
Color Black (as shown)
Features Durable, Heat Resistant, Wear Resistant
Certification ISO 9001 / RoHS
Storage (22℃) 1 month
Storage (0℃) 3 months
Storage (-18℃) 6 months

Key Features

  • 3K Carbon Fiber: High-strength reinforcement with consistent fiber alignment
  • Multiple Weave Options: Plain, Twill, or Unidirectional available
  • Epoxy Prepreg System: Uniform resin impregnation for consistent curing
  • Heat Resistance: Suitable for elevated temperature cure cycles
  • Lightweight & Sturdy: Excellent strength-to-weight ratio
  • ISO 9001 Certified: Quality-controlled production

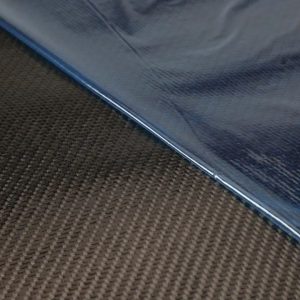

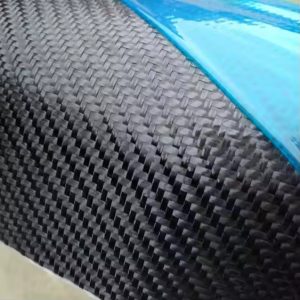

Prepreg Close-up

Applications

  • Aerospace components (fuselage, rudder, engine parts)
  • Sports equipment (fishing rods, bicycle frames, baseball bats, skis)
  • Automotive parts and motorcycle components
  • Industrial reinforcement (concrete structures, drive shafts)
  • Marine and boat building

Prepreg Application

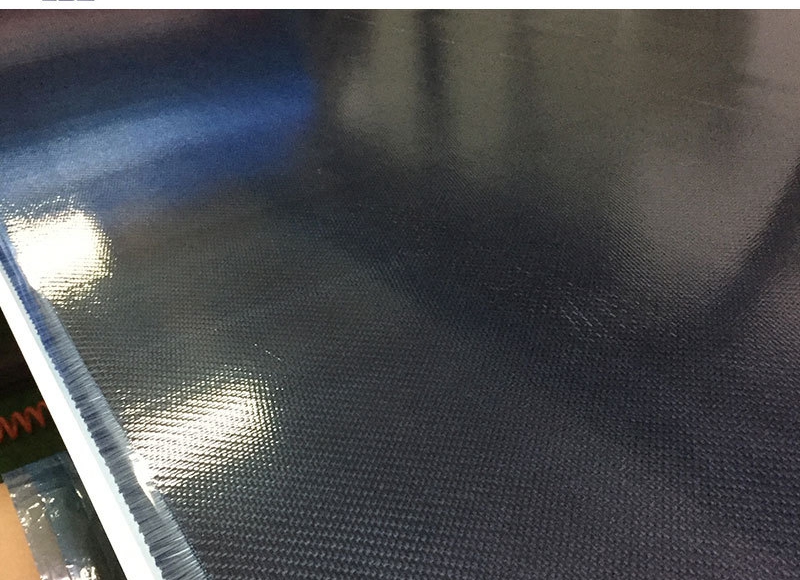

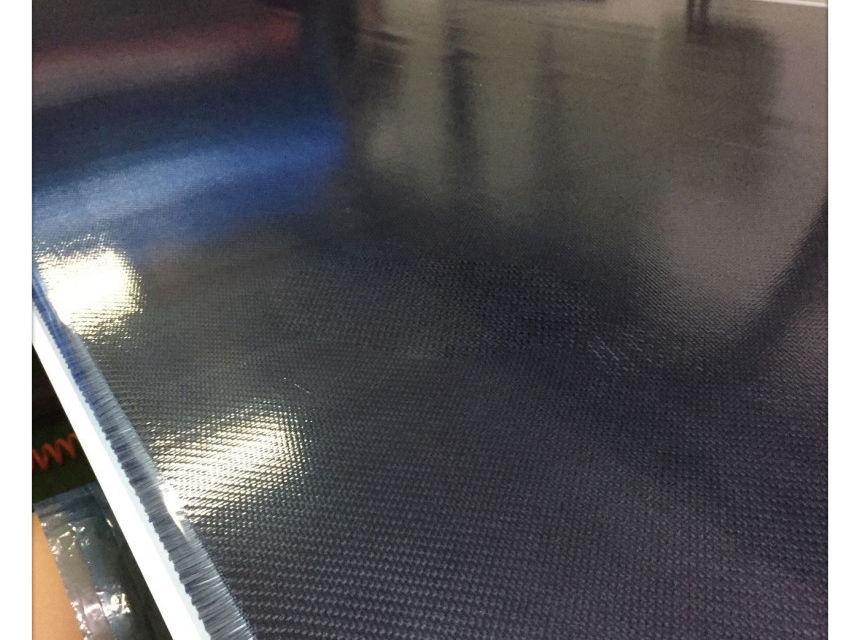

Prepreg Detail

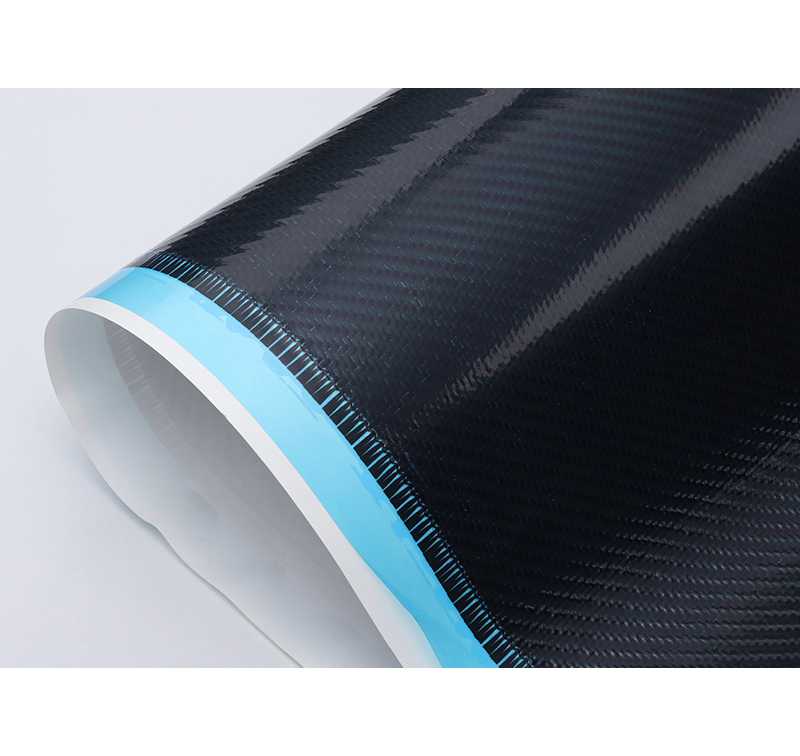

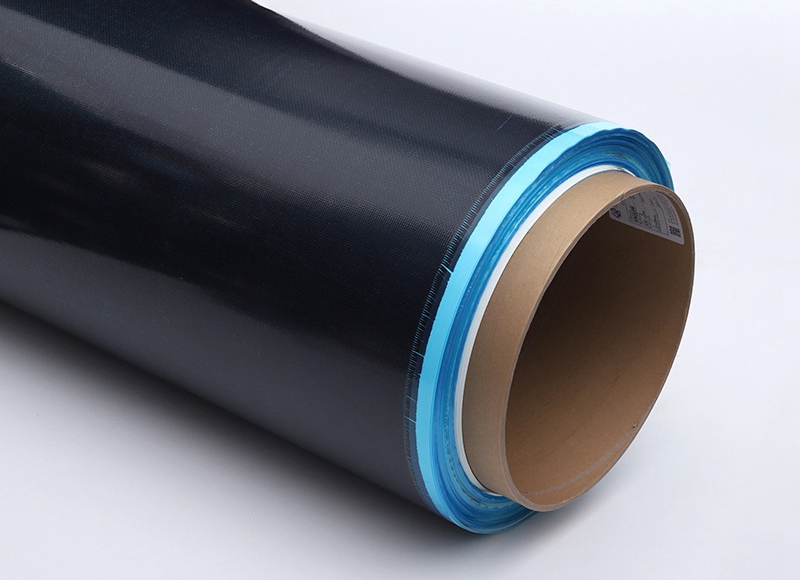

Prepreg Roll

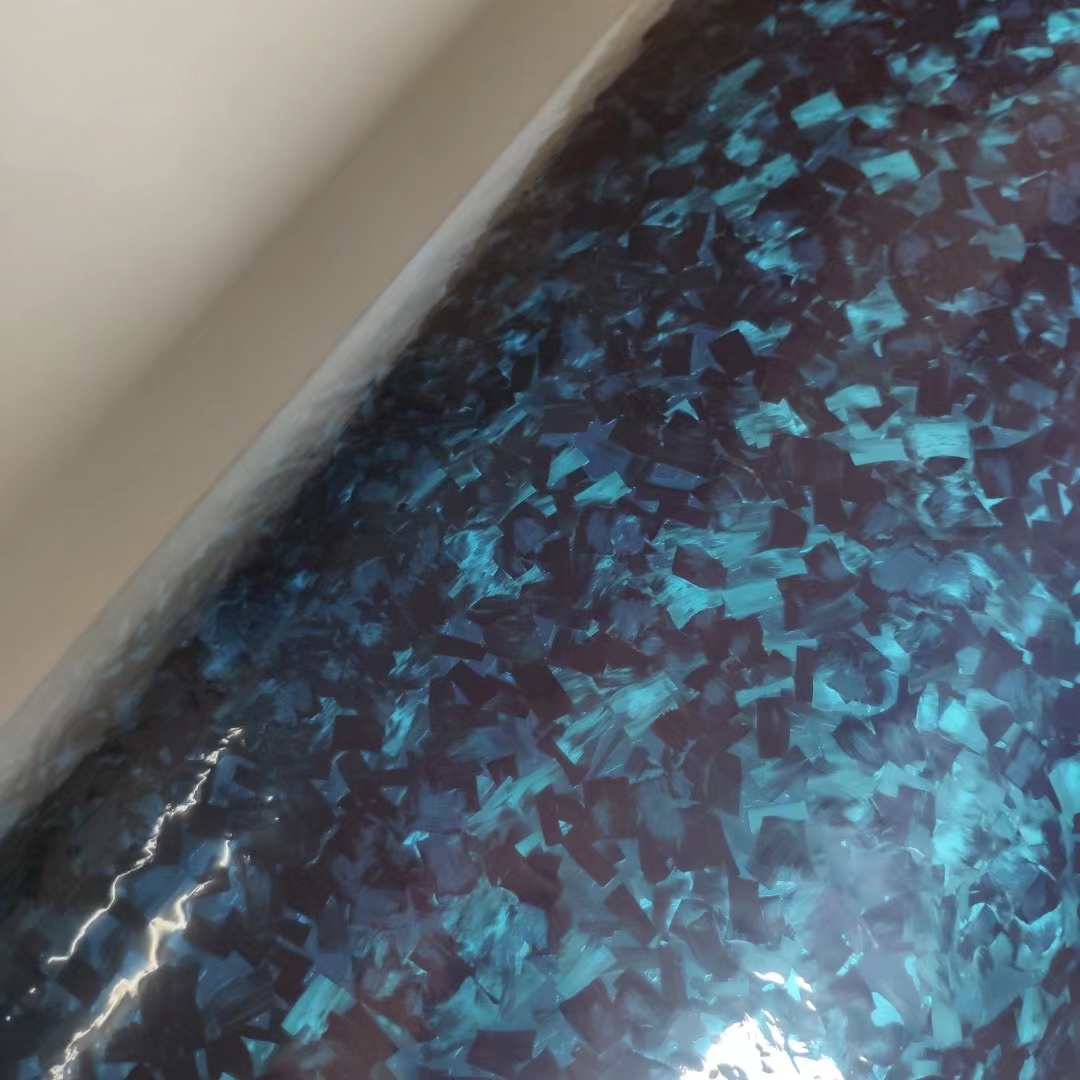

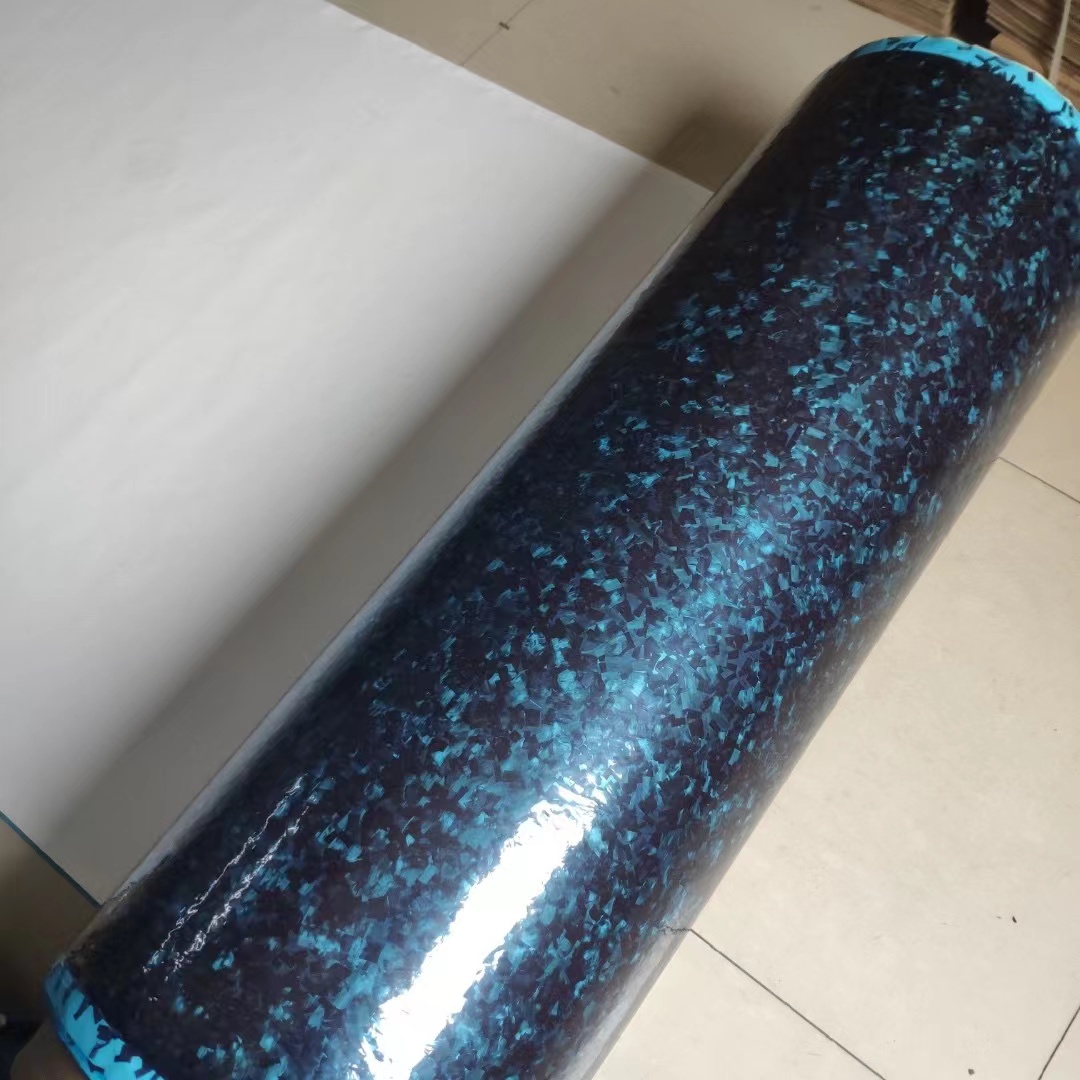

Prepreg Samples
