6K 320g Plain Weave Carbon Fiber Fabric – EV Chassis & Battery Housing Grade

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade

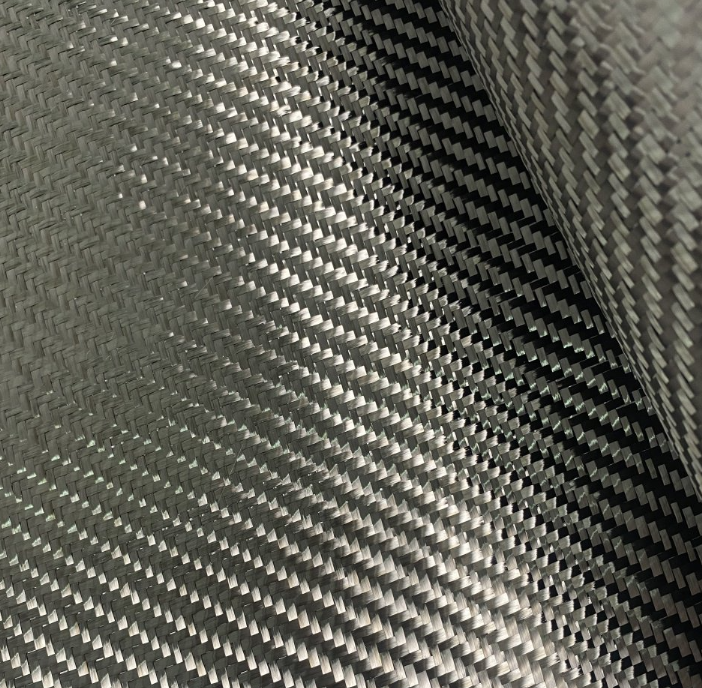

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 2

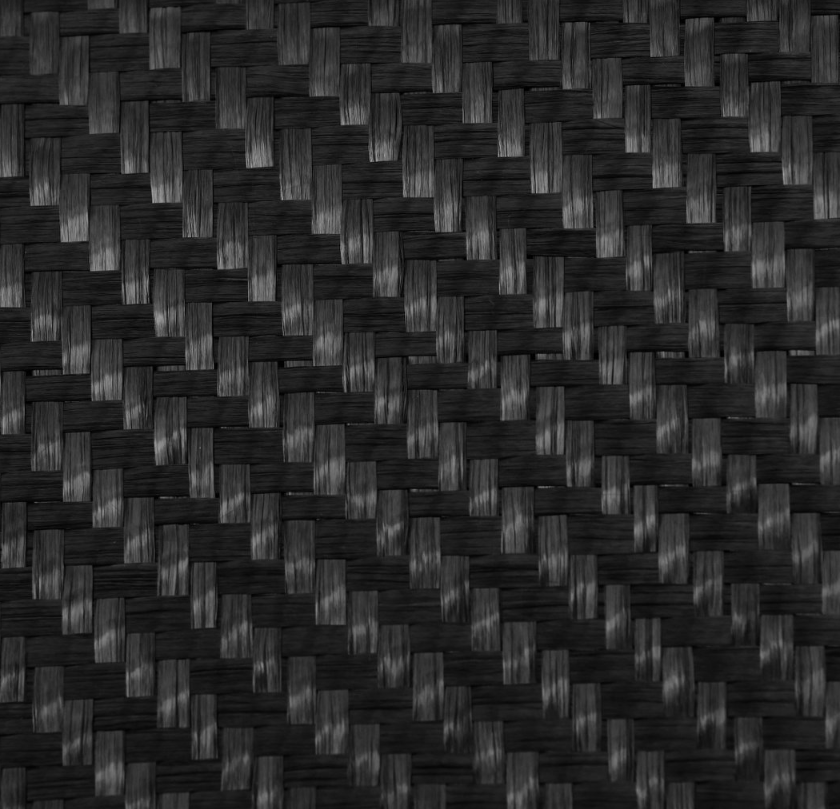

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 3

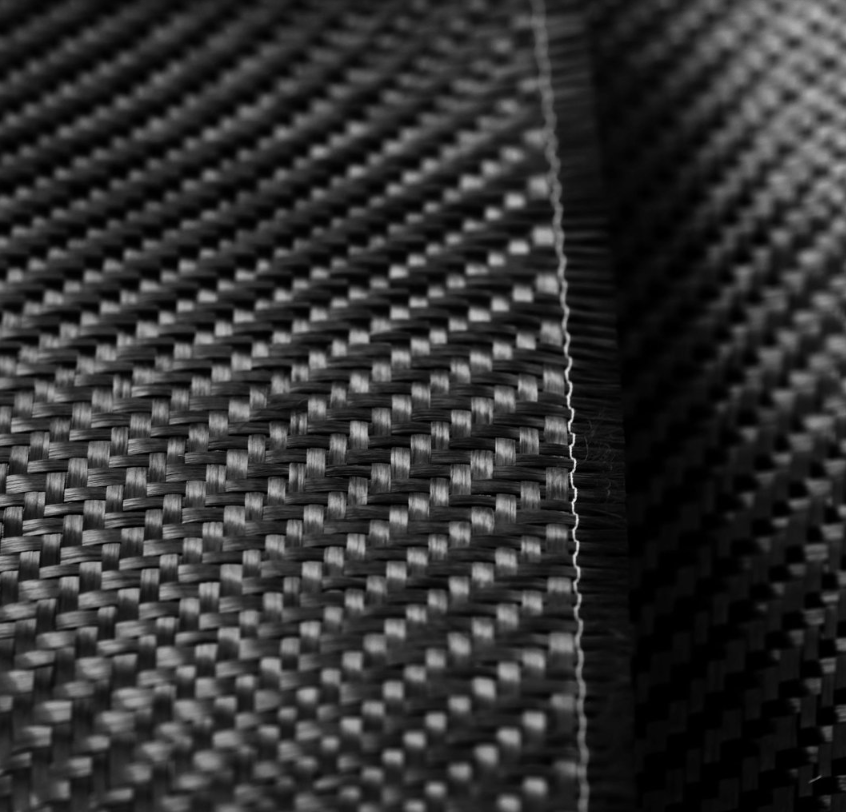

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 4

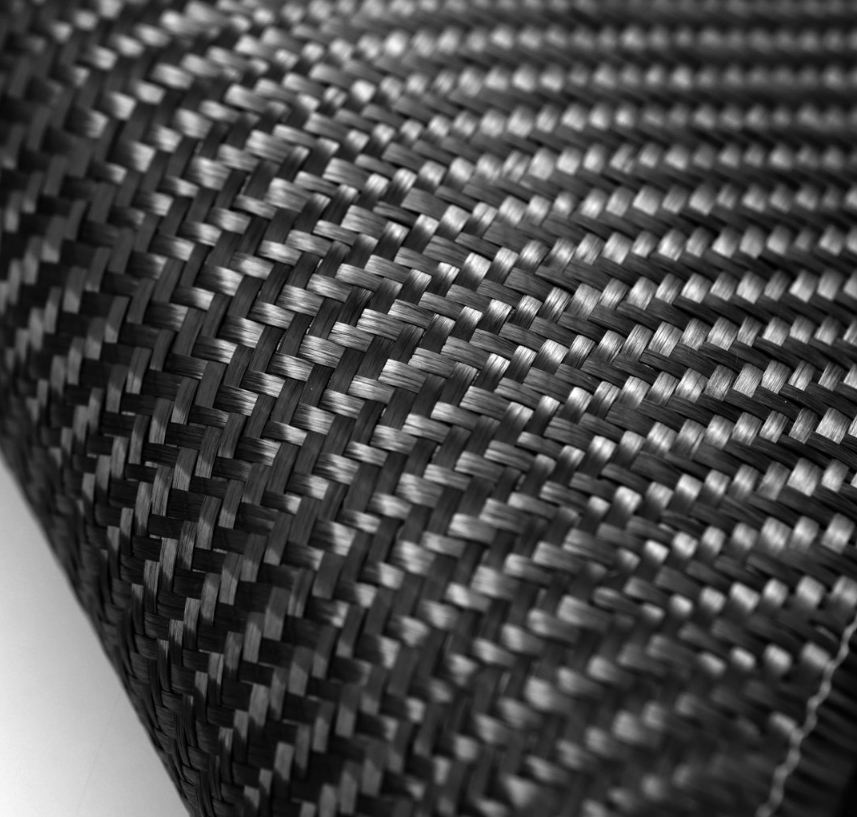

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 5

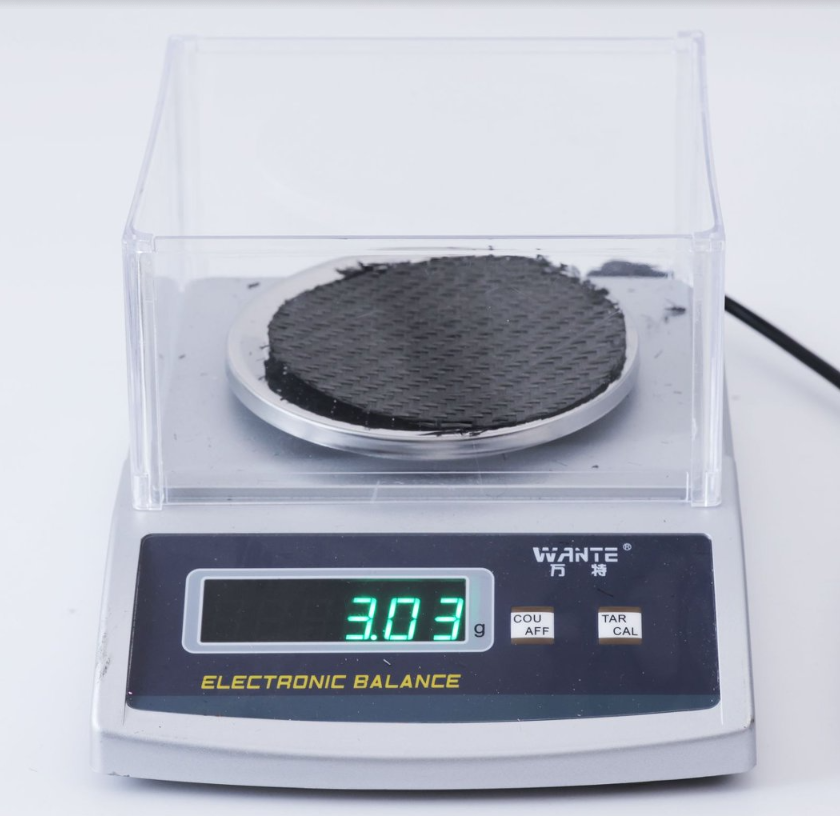

6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 6
6K 320g Plain Weave Carbon Fiber Fabric - EV Chassis & Battery Housing Grade - Image 7
Property Specification
Material 100% PAN-based Carbon Fiber
Fiber Tow 6K (6,000 filaments)
Areal Weight 320 g/m²
Weave Pattern Plain / Satin / Twill
Width 43-44″ (110 cm)
Tensile Strength ≥ 3,500 MPa
Elastic Modulus ≥ 230 GPa (T300) / ≥ 294 GPa (T700)
Tensile Modulus ≥ 220 (T300) / ≥ 230 (T700)
Carbon Content ≥ 95%
Fiber Density 1.76 – 1.80 g/cm³
Certification ISO 9001 / RoHS / CCS

6K 320g Carbon Fiber Fabric – Plain Weave for EV Chassis & Battery Housing

Medium-weight 6K 320g carbon fiber fabric engineered for electric vehicle chassis and battery enclosure structural applications. Made from T300/T700 grade PAN-based carbon fiber with plain weave for excellent structural stability and impact resistance.

Key Features

  • 6K Carbon Fiber: Medium tow count with excellent balance of strength and workability
  • 320g Balanced Weight: Ideal structural weight for chassis and housing components
  • Plain Weave: High fabric stability for consistent laminate properties
  • EV-Grade: Designed for electric vehicle battery enclosure and chassis parts
  • CCS Certified: ISO 9001 / RoHS / China Classification Society approved
  • Customizable: Available in satin, twill, or custom weave patterns

Applications

  • Electric vehicle chassis structural components
  • EV battery housing and enclosure panels
  • Industrial lightweight structural parts
  • Automotive underbody protection panels
  • Lightweight industrial machinery components
  • Consumer goods requiring high strength-to-weight ratio
