Property

Specification

Material

100% PAN-based Carbon Fiber (T700 Grade)

Fiber Tow

6K (6,000 filaments)

Areal Weight

400 g/m² (±5%)

Weave Pattern

Twill / Plain

Width

43-44″ (110 cm) / Ultra Wide up to 200-250 cm

Tensile Strength

≥ 3,500 MPa

Elastic Modulus

≥ 230 GPa (T300) / ≥ 294 GPa (T700)

Elongation at Break

1.5% – 2.0%

Fiber Density

1.76 – 1.80 g/cm³

Fiber Volume Fraction

≥ 55%

Certification

ISO 9001 / RoHS / CCS

Roll Length

100m / 500m / 1,000m custom industrial rolls

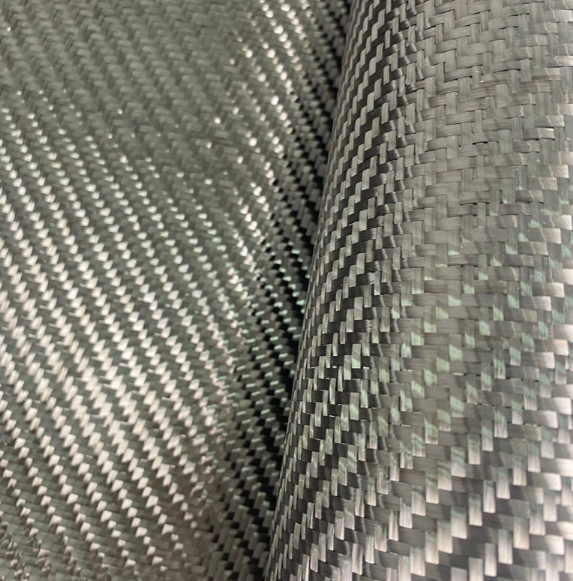

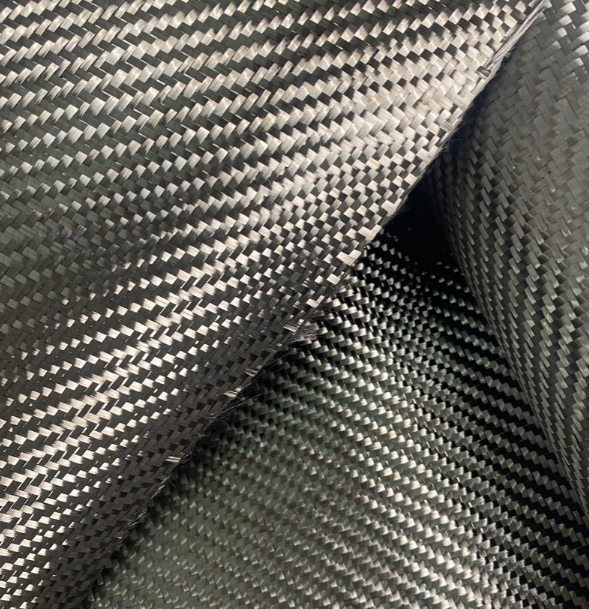

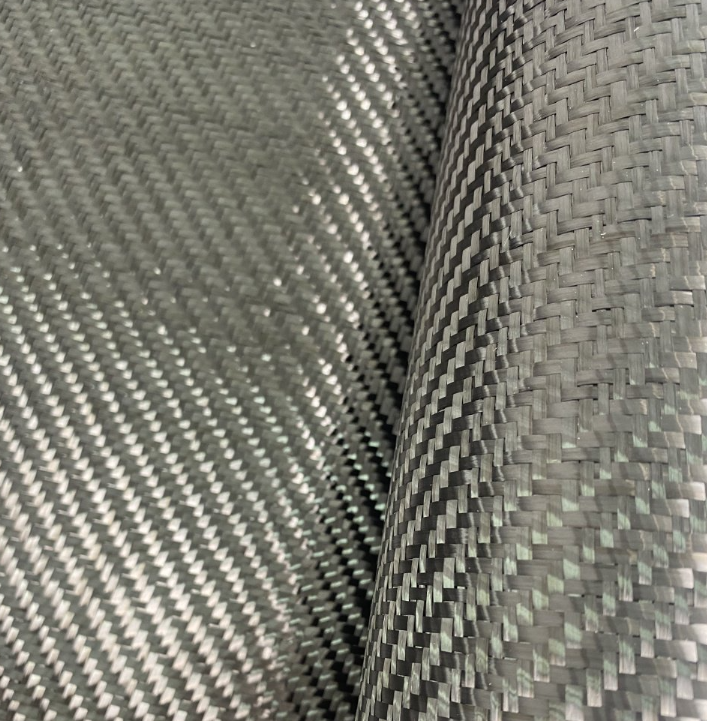

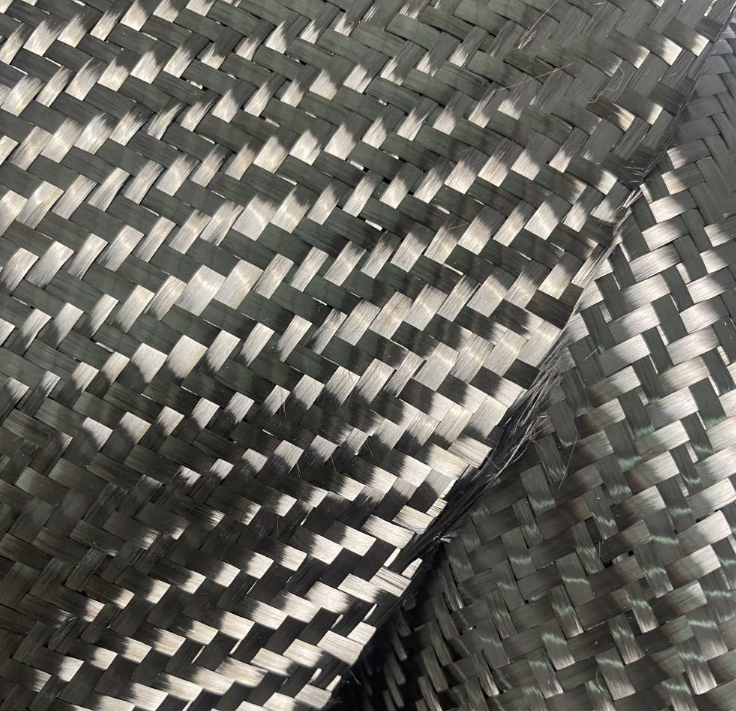

6K 400g T700 Grade High Strength Carbon Fiber Fabric – Ultra Wide for Offshore Wind & Aviation

Premium 6K 400g T700 grade carbon fiber fabric with ultra-wide width options (up to 200-250 cm). Engineered for large-scale offshore wind blade main shell structural plies and premium aviation components. Certified by ISO 9001, RoHS, and CCS for industrial-grade applications.

Key Features

6K T700 Carbon Fiber: Intermediate tow count with high strength T700 grade performance
Ultra-Wide Width: Available in standard 43-44″ or ultra-wide 200-250 cm formats
High Strength: ≥ 3,500 MPa tensile strength for structural integrity
CCS Certified: China Classification Society approved for marine and wind applications
Flexible Roll Length: Custom rolls from 100m to 1,000m for industrial production
High Fiber Volume: ≥ 55% fiber volume fraction for optimal composite performance
