Complete Guide to Bidirectional Carbon Fiber Cloth
In the rapidly evolving world of composite materials, bidirectional carbon fiber cloth stands out as a versatile and robust solution for industries ranging from aerospace to marine construction. Demand for lightweight, high-strength materials is at an all-time high, with the global carbon fiber market expected to reach USD 7.8 billion by 2024. This guide will delve into the technical specifications of bidirectional carbon fiber cloth, its applications, and procurement best practices. At Impact Materials, we bring 20 years of industry expertise to every project. Our experience in serving 120+ countries with over 3,200 successful projects underlines our commitment to quality and reliability. Whether you’re an engineer, procurement manager, or project leader, this article will equip you with the knowledge to make informed purchasing decisions. Bidirectional carbon fiber cloth, known for its balanced strength and adaptability, is a critical component in achieving optimal performance in demanding environments.
Key Takeaways
- Bidirectional carbon fiber cloth offers tensile strengths ranging from 3500 MPa, suitable for aerospace applications.
- For optimal performance, consider the weave pattern and fiber type based on application needs.
- Prepreg options like 3K twill weave enhance durability and consistency in manufacturing.
- When sourcing, assess supplier certifications like ISO 9001 for quality assurance.
Understanding Bidirectional Carbon Fiber Cloth
What is Bidirectional Carbon Fiber Cloth?
Bidirectional carbon fiber cloth, often referred to as woven carbon fiber fabric, is engineered with fibers oriented in two directions at right angles. This configuration offers balanced strength, making it ideal for applications requiring multidirectional load management. Typically, the tensile strength of bidirectional carbon fiber cloth ranges from 3500 MPa, which is suitable for high-demand sectors such as aerospace and automotive.
Technical Specifications
- Tensile Strength: 3500 MPa
- Density: 1.6 g/cm³
- Fiber Volume Fraction: 60%
- Elongation at Break: 1.5%
According to ASTM D3039 testing, these specifications ensure that the cloth can withstand significant stress while maintaining structural integrity. Impact Materials offers a range of twill weave carbon fiber fabric options that meet these demanding standards.
Applications and Industries
Bidirectional carbon fiber cloth is widely used across various industries, including aerospace for fuselage and wing skins, automotive for body panels, and marine for hull construction. Its ability to distribute loads evenly across two directions makes it a favored material in structural reinforcement applications.
Comparing Weave Patterns: Twill vs. Plain Weave

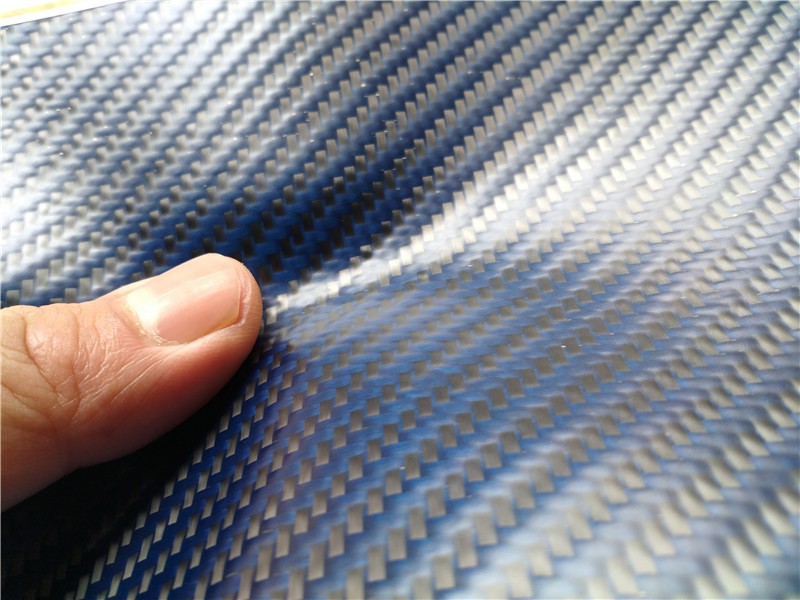

Twill Weave Carbon Fiber
Twill weave carbon fiber is characterized by a diagonal pattern, providing a high degree of flexibility and drapeability. This pattern is particularly beneficial in complex shapes and curves, making it ideal for automotive body panels and aerospace components. Twill weave also enhances the aesthetic appeal of the final product.
Plain Weave Carbon Fiber
Plain weave carbon fiber is the most basic form of weaving, offering a straightforward checkerboard pattern. While it provides less drapeability compared to twill, its tight weave structure ensures excellent dimensional stability. This makes plain weave carbon fiber suitable for flat surfaces and applications where stability is crucial.
| Weave Pattern | Flexibility | Applications |
|---|---|---|
| Twill | High | Automotive, Aerospace |
| Plain | Moderate | Construction, Marine |
For those seeking enhanced flexibility and aesthetics, the 3K twill carbon fiber fabric epoxy resin prepreg is an excellent choice, offering durability without compromising on appearance.
Featured Bidirectional Carbon Fiber Cloth Products
Explore our top-rated bidirectional carbon fiber cloth products from Impact Materials, trusted by manufacturers in 120+ countries.
Prepreg and Pultrusion Technologies
Benefits of Carbon Fiber Prepreg 3K
Carbon fiber prepreg 3K involves pre-impregnating fibers with a resin system, typically epoxy, to ensure a consistent and controlled resin-to-fiber ratio. This method enhances mechanical properties and reduces void content, leading to improved durability and performance consistency. Industry data from composite materials research indicates that prepreg components exhibit superior fatigue resistance.
Carbon Fiber Pultrusion

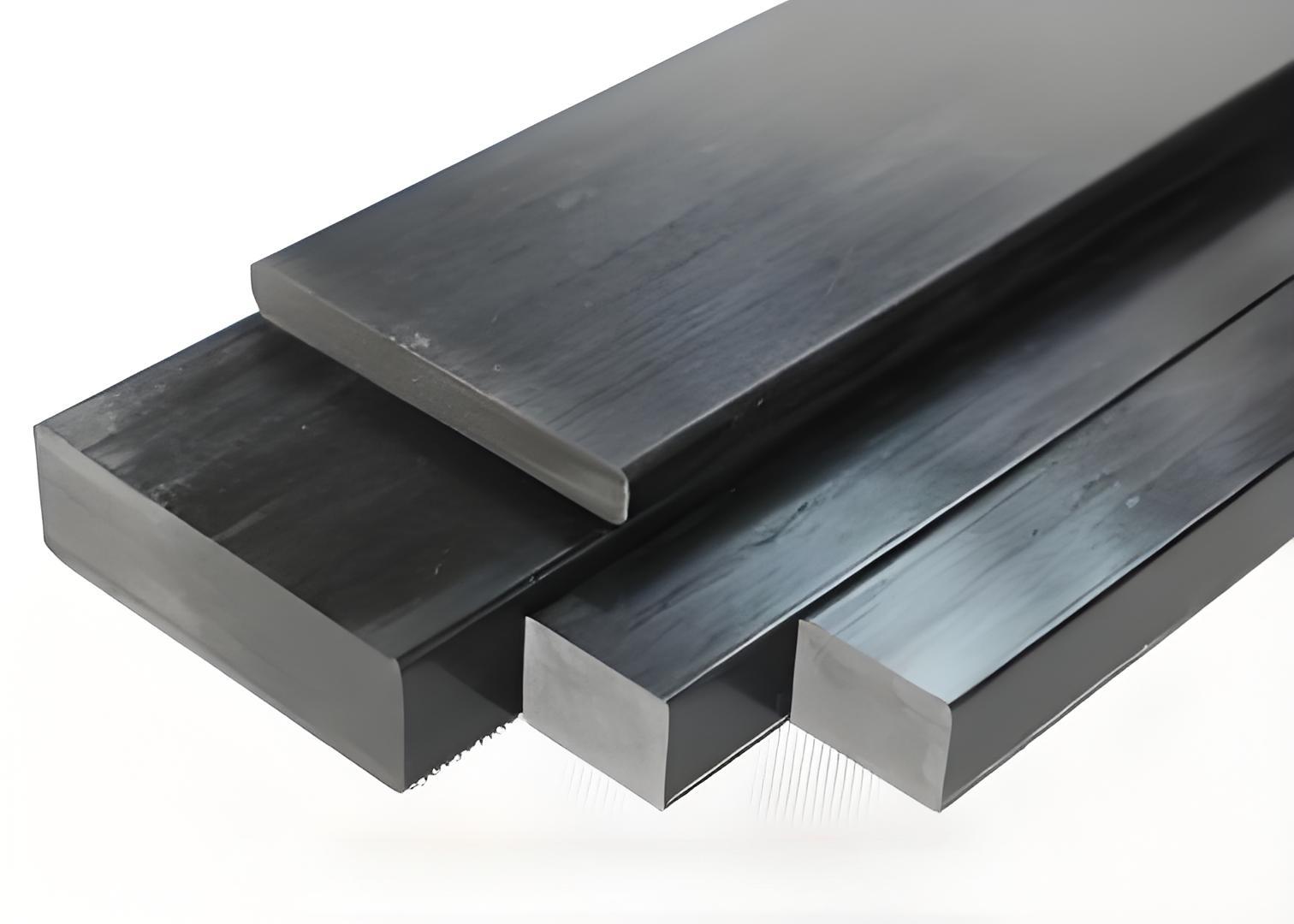

Pultrusion is a continuous manufacturing process that produces high-strength, lightweight profiles. The process involves pulling fibers through a resin bath and then through a heated die to create a cured profile. Impact Materials offers high-strength CFRP carbon fiber pultrusion with square or rectangular rod shapes, ideal for structural applications.
- Consistent cross-section
- High strength-to-weight ratio
- Low thermal expansion
- Corrosion resistance
These properties make pultruded products suitable for construction and infrastructural reinforcement.
Need a custom solution? Our technical experts are ready to help.
Procurement Insights for Bidirectional Carbon Fiber Cloth
Supplier Selection Criteria
When selecting a supplier for bidirectional carbon fiber cloth, it is crucial to assess the certifications and quality standards they adhere to. Look for suppliers like Impact Materials, which are ISO 9001 certified and comply with additional relevant material standards. A reliable supplier will provide a Certificate of Analysis (COA) upon request, ensuring the product meets specified requirements.
MOQ, Lead Time, and Customization
Understanding minimum order quantities (MOQ) and lead times is essential for effective procurement planning. Typical MOQs range from 100 square meters, with lead times varying based on customization needs. Impact Materials offers one-stop solutions for all composite needs, allowing for tailored specifications and configurations to meet unique project demands.

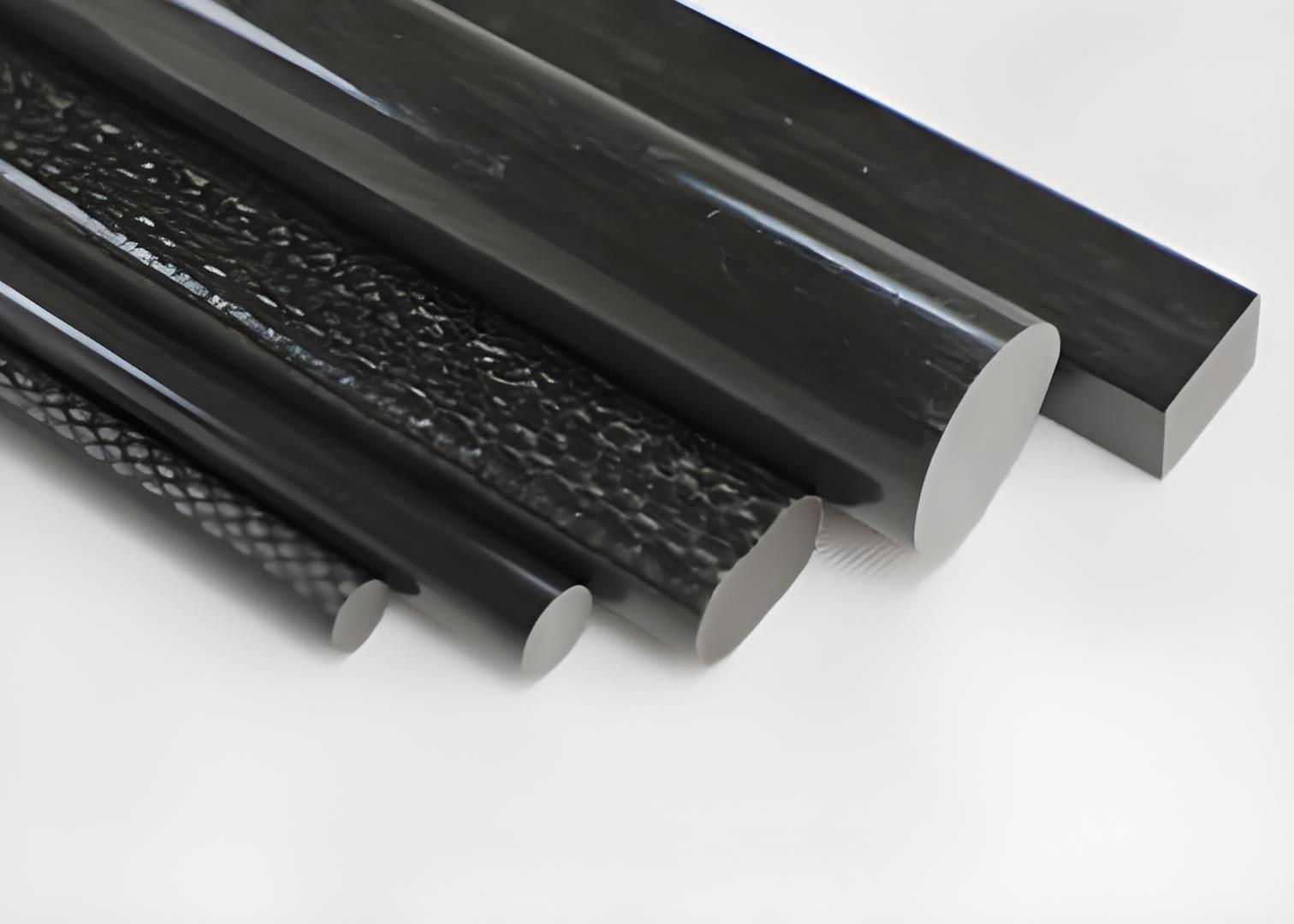

For customized solutions, consider customized round CFRP carbon fiber tubes, which can be produced with matte or glossy finishes to suit specific aesthetic and functional requirements.
More Bidirectional Carbon Fiber Cloth Solutions
Discover additional bidirectional carbon fiber cloth options to meet your specific project requirements.
Ready to Source Quality Composite Materials?
Impact Materials serves 120+ countries with 400+ product specifications. Get your custom quote in 24 hours.
Frequently Asked Questions
What certifications should I look for in carbon fiber suppliers?
Ensure suppliers are ISO 9001 certified and meet specific industry standards such as ASTM D3039 for tensile strength. Impact Materials holds relevant certifications, ensuring high-quality products.
What are the typical MOQ and lead time for carbon fiber cloth?
MOQ generally starts at 100 square meters, with lead times ranging from 4 to 6 weeks, depending on customization. For specific inquiries, contact Impact Materials at our contact page.
Can I customize the weave pattern of carbon fiber cloth?
Yes, customization is possible to meet specific application requirements. Impact Materials offers a variety of weave patterns and fiber types to choose from.
How is quality controlled in carbon fiber production?
Quality control involves rigorous testing, including tensile strength and elongation tests, to ensure compliance with standards. Suppliers should provide a COA upon request.
What logistics considerations are there for international shipping?
Consider shipping regulations and packaging requirements for safe transport. Impact Materials ships to 120+ countries, providing reliable logistics solutions.
How does carbon fiber perform in high-temperature environments?
Carbon fiber can withstand temperatures up to 200°C depending on the resin system used. For specific high-temperature applications, consult with our technical team.
Work With a Trusted Bidirectional Carbon Fiber Cloth Supplier
Hangzhou Impact New Materials Co., Ltd. (Impact Materials) has delivered bidirectional carbon fiber cloth solutions to clients in 120+ countries for over 20 years. Our 3,200+ successful projects and 400+ product specifications mean we have exactly what your project needs.
