Complete Guide to UHMWPE Armor Panels: Applications & Procurement

In the ever-evolving field of ballistic protection, UHMWPE armor panels have emerged as a leading solution due to their unparalleled strength-to-weight ratio. According to industry data, UHMWPE (Ultra High Molecular Weight Polyethylene) can achieve tensile strengths of up to 3.0 GPa. This article will explore the technical specifications, industry applications, and procurement insights of UHMWPE armor panels. At Impact Materials, we bring 20 years of industry expertise to every project, ensuring quality and reliability for clients across 120+ countries.

Understanding UHMWPE Armor Panels

Technical Specifications and Standards

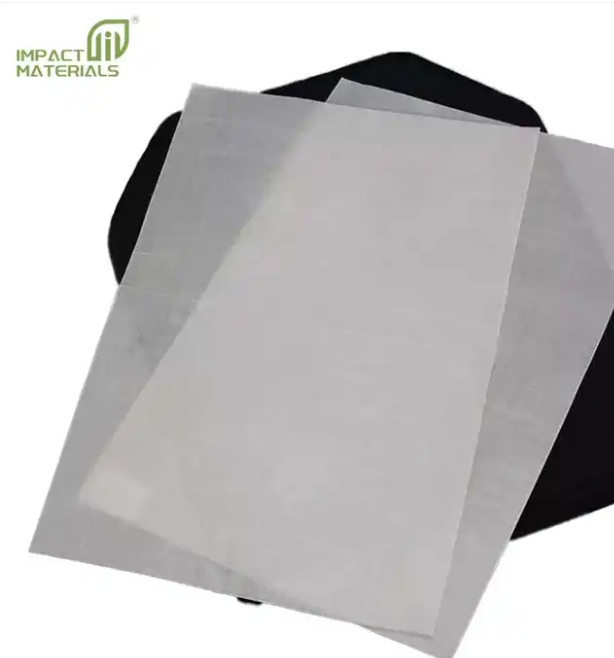

UHMWPE armor panels are renowned for their high tensile strength, light weight, and chemical resistance. These panels typically range in tensile strength from 2.0 to 3.0 GPa and have an elongation at break of up to 15%. According to ASTM D3039, these properties are critical for applications requiring ballistic protection. The ISO 9001 certification further ensures quality management systems are in place. UHMWPE Material Grades provide a comprehensive overview of available specifications.

Applications in Defense and Beyond

UHMWPE armor panels are extensively used in military applications for body armor and vehicle protection. The panels’ lightweight nature allows for enhanced mobility without compromising safety. Additionally, UHMWPE is used in the construction of helmets and anti-cut fabrics. Industries such as aerospace and automotive also utilize these materials for structural reinforcement. For instance, UHMWPE helmet material is crucial for reducing head injuries in combat scenarios.

Advantages Over Traditional Materials

Compared to traditional materials like steel and aramid fibers, UHMWPE offers significant weight savings—up to 50% lighter—while maintaining equivalent or superior ballistic performance. This makes it ideal for applications where weight reduction is critical. For example, UHMWPE marine ropes benefit from the material’s strength and buoyancy, enabling safer and more efficient marine operations.

Procurement Insights for UHMWPE Armor Panels

Supplier Selection Criteria

When selecting a supplier for UHMWPE armor panels, consider their industry certifications, such as ISO 9001, and their track record of successful projects. Impact Materials, with over 3,200 successful projects, exemplifies reliability. Buyers should also request a Certificate of Analysis (COA) to verify material properties and compliance with standards.

Lead Times and Minimum Order Quantities

Understanding lead times and MOQs is crucial for efficient supply chain management. Typical lead times for UHMWPE products range from 4 to 8 weeks, depending on customization requirements. At Impact Materials, we offer flexible MOQ options to accommodate varying project sizes, ensuring timely delivery and cost-effectiveness.

Customization and Quality Control

Customization options for UHMWPE armor panels include varying thicknesses, colors, and surface finishes. Quality control measures, such as in-house testing and third-party verifications, ensure the panels meet stringent performance criteria. Regular quality inspections and adherence to international standards like EN 2566 are vital for maintaining product integrity.

Material Property	UHMWPE	Aramid	Steel
Tensile Strength (GPa)	2.0 – 3.0	1.0 – 2.0	0.4 – 0.6
Weight (g/m²)	150 – 300	200 – 400	500 – 1000
Elongation at Break (%)	10 – 15	2 – 4	10 – 20
Chemical Resistance	Excellent	Good	Poor

Industry Applications and Case Studies

Aerospace and Automotive Uses

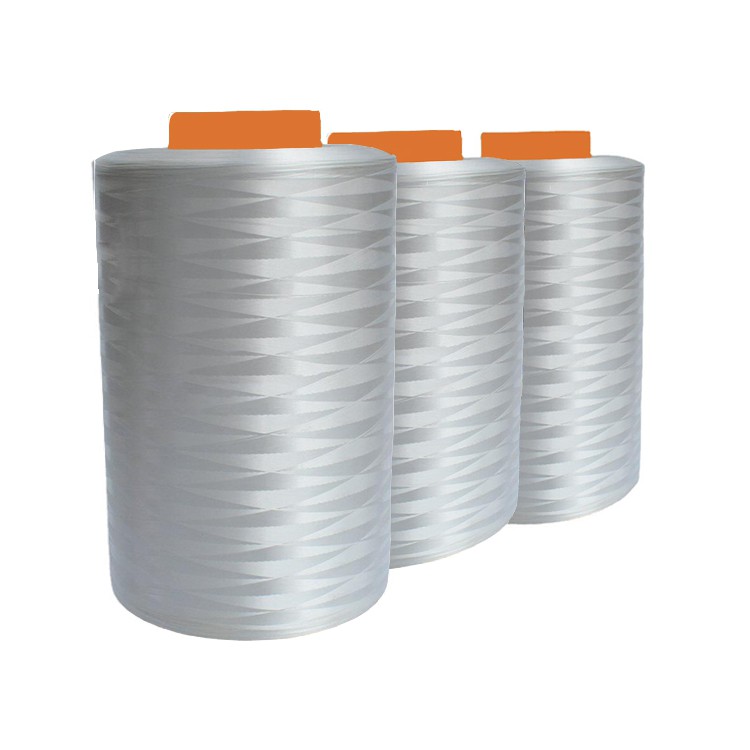

In aerospace, UHMWPE is used for fuselage and wing skins, providing lightweight reinforcement that enhances fuel efficiency. Automotive industries utilize the material in body panels and structural components to improve crashworthiness and reduce vehicle weight. Impact Materials offers UHMWPE Yarn Fiber ideal for these applications.

Construction and Wind Energy Projects

UHMWPE is also used in construction for FRP reinforcement, enhancing the durability and longevity of structures. In the wind energy sector, UHMWPE is used in blade manufacturing, offering high fatigue resistance and reduced maintenance needs. This application is particularly beneficial for offshore wind farms, where reliability is paramount.

Sports Equipment and Consumer Goods

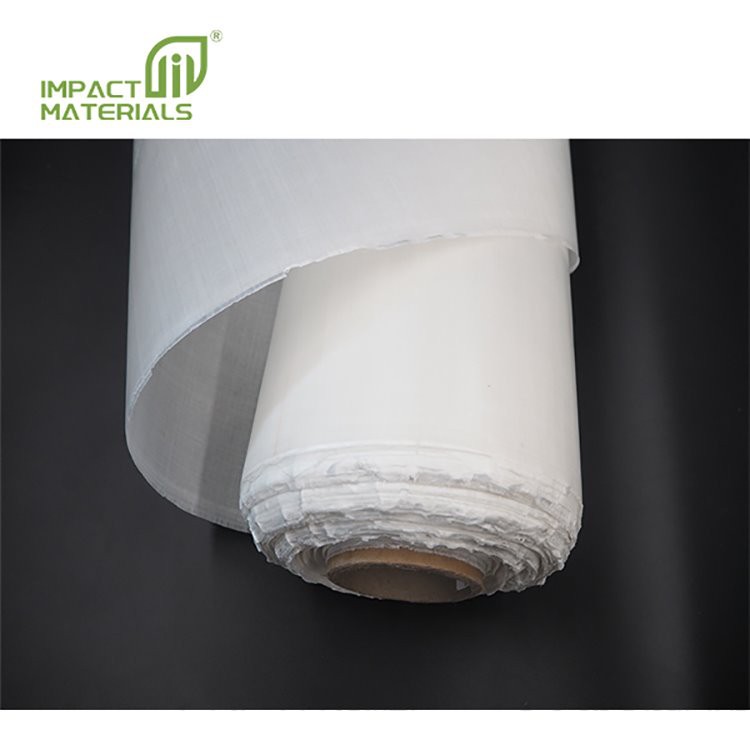

The sports equipment industry benefits from UHMWPE’s impact resistance and lightweight properties, making it suitable for protective gear and high-performance equipment. Additionally, consumer goods such as luggage and outdoor gear use UHMWPE for its durability. The UHMWPE Fiber Woven Fabric is a popular choice for these applications.

Frequently Asked Questions

What certifications should I look for in UHMWPE armor panels?

Essential certifications include ISO 9001 for quality management and ASTM standards for material properties. Ensure suppliers provide a Certificate of Analysis (COA) to verify compliance. Contact our technical team at Impact Materials for more information.

What are the typical lead times and MOQs for UHMWPE products?

Lead times usually range from 4 to 8 weeks, with MOQs varying based on product specifications and customization needs. At Impact Materials, we offer flexible MOQs to meet diverse project requirements.

Can UHMWPE armor panels be customized?

Yes, UHMWPE armor panels can be customized in terms of thickness, color, and surface finish to meet specific project needs. Discuss your customization options with our team to ensure optimal results.

How is quality control maintained during production?

Quality control involves in-house testing, third-party verifications, and adherence to international standards. Regular inspections and compliance checks ensure product quality and performance.

What logistical considerations should I be aware of?

Considerations include shipping methods, packaging, and storage conditions to maintain material integrity. Partnering with a reliable supplier like Impact Materials can streamline logistics.

How do UHMWPE panels perform in extreme conditions?

UHMWPE panels maintain excellent performance in extreme temperatures and harsh environments, making them suitable for a wide range of applications. For detailed specifications, contact Impact Materials.
