A few years ago a customer asked me if UHMWPE UD fabric was just “fancy plastic wrap.” He’d been buying aramid for years and didn’t trust the new material. Six months later he called back apologizing — his NIJ Level IIIA vests were 30% lighter and his line workers actually wore them instead of leaving them in the locker.
UHMWPE UD stands for ultra-high molecular weight polyethylene unidirectional fabric. If you’re in the body armor business, marine rigging, or any industry that needs lightweight ballistic protection, you’ve probably seen the term. Maybe you’re wondering how it’s different from woven aramid (Kevlar). Or why everyone switched from aramid to UHMWPE for soft armor over the last decade.
I’ve been selling these materials for years and I’ll be straight with you: UHMWPE UD isn’t perfect. It has temperature limits, it has creep issues under sustained load, and the cross-ply lamination process adds steps that frustrate some manufacturers. But for stopping a bullet at the lowest possible weight, nothing beats it.
What “UD” Actually Means
Unidirectional means all the fibers run in one direction — zero-degree orientation. No weaving, no crimp. Every fiber lies parallel to its neighbor. That matters because in a woven fabric, the fibers that run over-and-under each other create microscopic bends (crimp points) that reduce the fabric’s ability to absorb impact energy.
With UD fabric, you get: no crimp, maximum fiber alignment, and higher energy transfer efficiency when a projectile hits. The trade-off is that UD fabric has almost no strength in the cross direction. So manufacturers stack multiple UD layers at 0°/90° (and sometimes ±45°) and laminate them together with a thin polymer film. That cross-ply laminate is what actually gets used in armor.
Most people don’t realize that UD is really a semi-finished product. What you buy as “UHMWPE UD fabric” is typically 4 layers of 0/90 cross-ply already laminated. Some suppliers sell single-ply UD for custom layup, but that’s less common.
How UHMWPE UD Compares to Woven Fabrics
| Property | UHMWPE UD (Cross-ply) | UHMWPE Woven Fabric | Aramid Woven Fabric |
|---|---|---|---|
| Fiber Orientation | Parallel, 0° (layered at angles) | Over-under crimp structure | Over-under crimp structure |
| Energy Absorption | Excellent — no crimp = full fiber engagement | Good — crimp reduces efficiency ~15% | Good — similar crimp limitations |
| Weight (areal density) | 100 – 250 g/m2 per layer | 150 – 350 g/m2 per layer | 180 – 400 g/m2 per layer |
| Flexibility | Stiffer than woven (polymer film binder) | More flexible, drapes better | Moderate flexibility |
| Ballistic Efficiency | Highest (NIJ IIIA at ~5 kg/m2) | Moderate (~6-7 kg/m2 for same level) | Moderate (~6-8 kg/m2) |
| Multi-hit Performance | Good (depends on laminate design) | Better (fabric tension absorbs energy) | Good to very good |
Numbers are from typical commercial grades. Always verify with your supplier’s test data.
Why Body Armor Makers Switched to UHMWPE UD
I watched this shift happen over about five years. Around 2018, most soft armor was still aramid woven fabric. By 2023, almost every major body armor brand had a UHMWPE UD line. The reason is simple: weight.
An NIJ Level IIIA vest using UHMWPE UD weighs about 30% less than an equivalent aramid vest. For a soldier or police officer who wears that vest 10-12 hours a day, that difference is huge. It’s not just comfort — lighter armor means better mobility, less fatigue, and higher compliance (people actually wear it).
UHMWPE UD also doesn’t absorb moisture. Aramid absorbs 3-7% moisture by weight. In humid environments — think Southeast Asia, the Gulf, coastal operations — that means your aramid vest gets heavier over the course of a shift. UHMWPE absorbs virtually nothing.
What nobody tells you about UHMWPE UD armor: If you store it folded or rolled for extended periods, it takes a set. The polymer film binder creeps and the panel won’t lay flat. I’ve seen customers panic because their brand-new armor panels arrived folded in packaging and looked wrinkled. They still work — but you have to let them relax at room temperature for 24-48 hours before use.
Products We Carry
 |
UHMWPE Yarn FiberThe raw material for UD fabric production. High-tenacity yarn, 1000-1600 denier, available in various finishes. |
 |
UHMWPE Knitted FabricKnitted UHMWPE for flexible composite applications. Used as backing layer in hybrid armor systems. |
 |

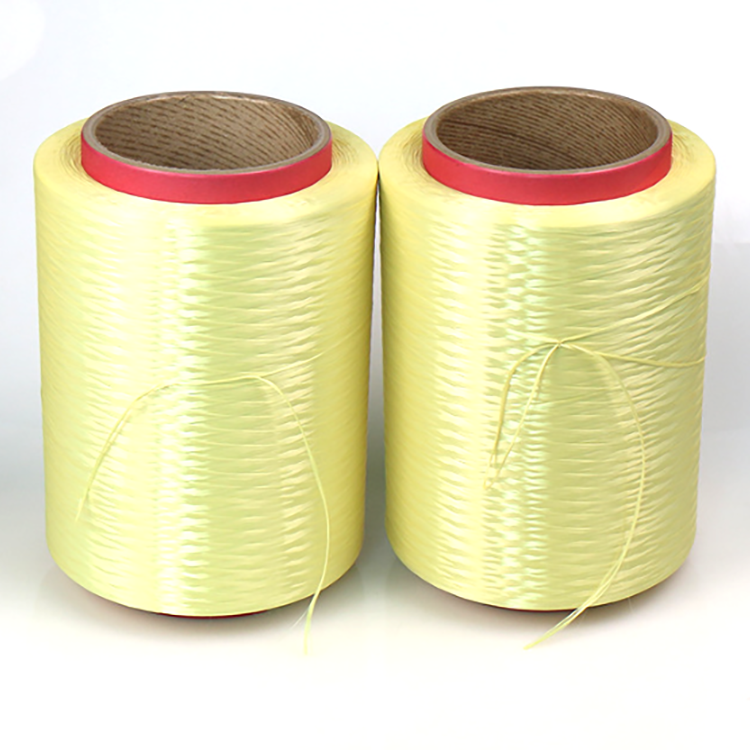

Aramid Yarn FiberOften used alongside UHMWPE UD in hybrid armor designs. Provides heat resistance that UHMWPE lacks. |
We also stock UHMWPE UD Fabric directly — cross-ply laminated rolls for armor manufacturers. Contact us for technical datasheets and pricing.
Limitations You Need to Know
I’m not going to sell you UHMWPE UD without telling you where it falls short. Here’s what I’ve learned the hard way:
Temperature. UHMWPE starts losing strength above 80°C (176°F). Continuous exposure above 100°C will degrade it permanently. If your application involves engine compartments, desert sun with dark armor surfaces, or any heat source — use aramid or a hybrid system with a ceramic or aramid strike face.
Creep. Under sustained static load, UHMWPE UD laminates creep. The polymer chains slowly reorient. For ballistic armor this isn’t a problem (impact events are microseconds). For structural applications like slings or lifting — it matters.
UV. Like all polyethylene, UHMWPE degrades in direct sunlight. Uncoated UD fabric left outside for weeks will lose strength. Store it indoors, keep it covered.
Cost. UHMWPE UD costs more than aramid fabric per square meter. The total system cost can be lower because you need fewer layers to achieve the same ballistic rating. But the upfront material cost is higher. Factor that into your budgeting.
Frequently Asked Questions
Is UHMWPE UD fabric the same as Dyneema?
Dyneema is a brand name for UHMWPE fiber made by DSM (now Avient). Not all UHMWPE UD fabric is Dyneema — there are other manufacturers (Honeywell Spectra, domestic Chinese producers). The fiber chemistry is the same, but the quality, consistency, and processing varies. If your spec calls for Dyneema specifically, check the certificate of origin.
Can you cut UHMWPE UD fabric with scissors?
Technically yes, practically no. The fibers are so tough they’ll dull standard scissors fast. You need carbide-tipped or industrial shears. Laser cutting works well, but the edges melt slightly. For production runs, die-cutting is the standard approach.
What NIJ level can UHMWPE UD achieve?
For soft armor: Level IIA, II, and IIIA are standard with UHMWPE UD alone. For Level III (rifle rounds), you need a hard armor plate — typically a ceramic strike face bonded to a UHMWPE UD backing. Some manufacturers claim Level III with pure UHMWPE laminate, but it’s thick enough to be impractical.
How many layers of UD fabric do I need for a vest?
This depends entirely on the threat level and the specific UD grade. Rough rule of thumb: Level IIIA (handgun rounds up to .44 Mag) typically requires 20-30 layers of 100-130 g/m2 UD fabric. Your supplier should provide layup recommendations with their material. Don’t guess — ask for the ballistic test data.
